Geometry and meshing with Cubit

Cubit is the geometry and mesh generation toolkit from Sandia National Laboratories that every ACE3P workflow starts with. This chapter walks through building and meshing a pillbox cavity, first interactively so you learn the interface, then as journal files so the process is reproducible. The export rules and the acdtool conversion that follow are on the mesh preparation page.

Cubit's own tutorials at cubit.sandia.gov and coreform.com go deeper on the tool itself.

The interface

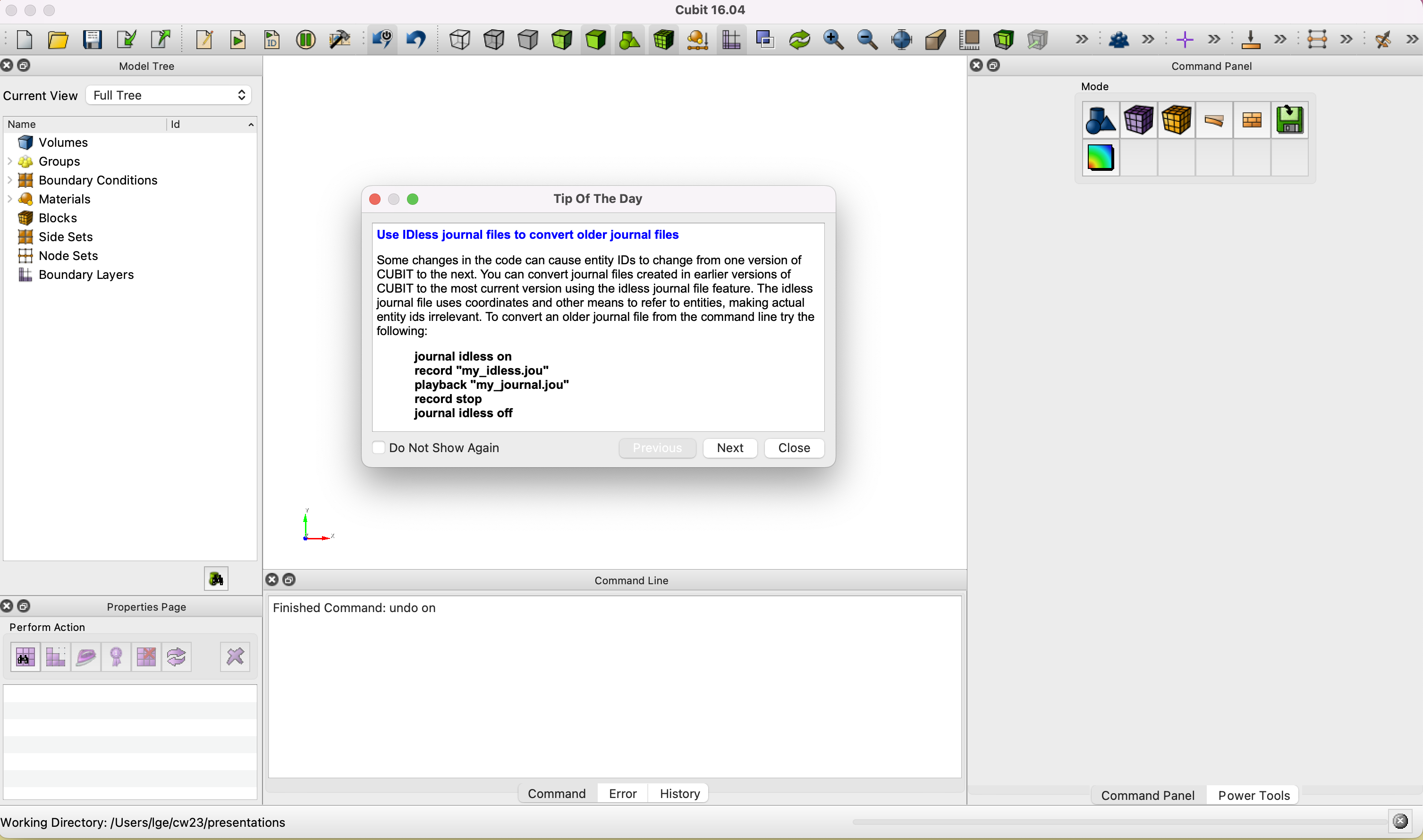

Cubit on first launch. Model Tree at left, graphics window center, Command Panel at right, Command Line at bottom. Close the Tip of the Day.

Five regions matter:

Region	Use
Model Tree	Browse volumes, surfaces, curves, and the sidesets and blocks you define. Clicking an entity highlights it in the graphics window.
Graphics window	Rotate with the left mouse button, zoom with the right, pan with the middle. Click an entity to select it; its ID appears in the command line.
Command Panel	Three rows of icons: Mode (Geometry, Mesh, Exodus for boundary conditions, and so on), then Entity (Volume, Surface, Curve, Vertex), then Action. Each click descends one level and ends at a form with an Apply button.
Command Line	Every GUI action echoes here as a text command. You can also type commands directly. The History tab keeps the last hundred. Type help <command> for syntax.
Properties Page and Power Tools	Properties of the selected entity; geometry checking and repair tools.

Set the working directory before anything else, with File, then Set Directory, or by typing cd "/path/to/pillbox" in the command line. Files are read and written relative to it.

Work in millimeters, export in meters

Build and mesh in the natural units of the drawing, usually millimeters, to avoid tolerance problems with tiny coordinates. Scale by 0.001 as the last step before export. ACE3P expects meters.

Modeling a pillbox interactively

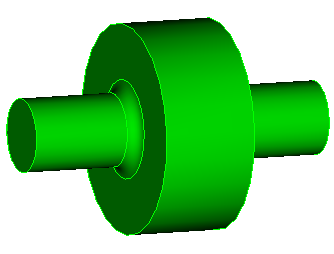

The target is an L-band pillbox: cavity 90 mm long and 100 mm in radius, beam pipe 35 mm in radius and 300 mm long overall, iris rounded with a 12 mm radius. Its TM₀₁₀ mode is near 1.2 GHz.

Create the cell

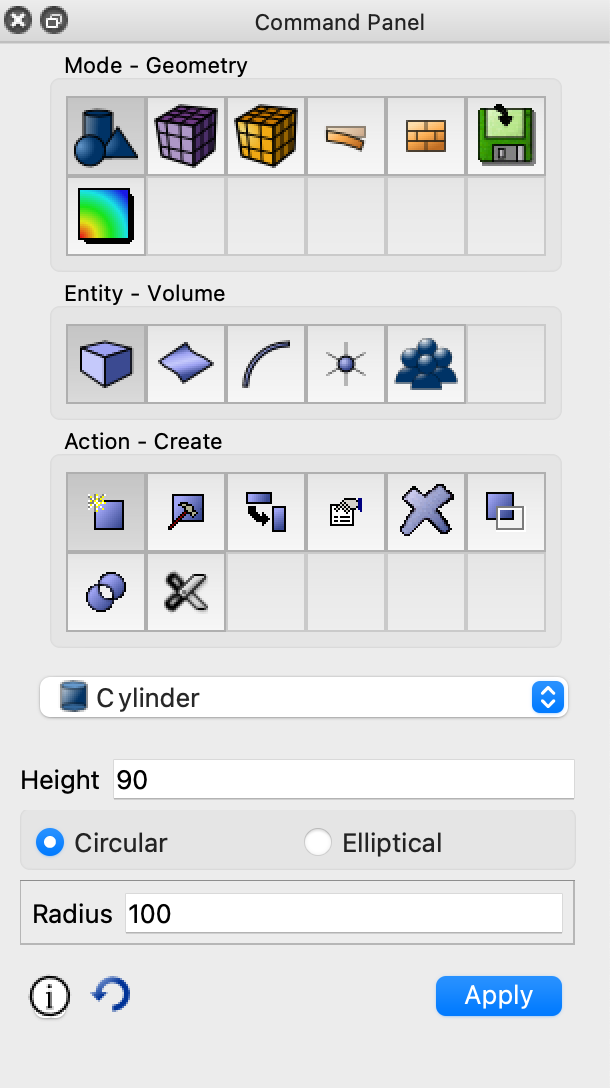

In the Command Panel choose Mode Geometry, Entity Volume, Action Create, select Cylinder, enter height 90 and radius 100, and click Apply. The command line shows the equivalent text:

create cylinder height 90 radius 100

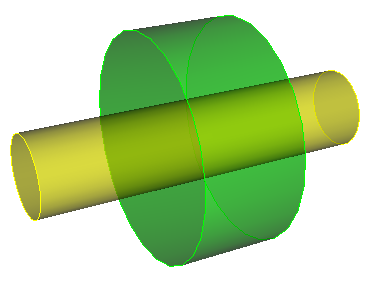

Add the beam pipe

Repeat with height 300 and radius 35. Both cylinders are centered on the origin along z, so the pipe passes through the cell.

Unite

Under Entity Volume, Action Boolean, pick Unite, enter volume IDs 1 2, Apply. Then compress ids so the surviving body is volume 1 with consecutive surface and curve numbers:

unite volume 1 2
compress ids

The three Boolean operations are Unite, Subtract, and Intersect. Cubit renumbers entities after every Boolean or deletion, and the gaps confuse later commands, so get in the habit of compressing IDs immediately.

Round the iris

Click a curve in the graphics window and its ID appears in the command line. The two iris circles where the pipe meets the cell are curves 5 and 6 after the compress. Under Entity Curve, Action Modify, choose Blend/Chamfer, enter 5 6, Blend, radius 12, Apply:

modify curve 5 6 blend radius 12

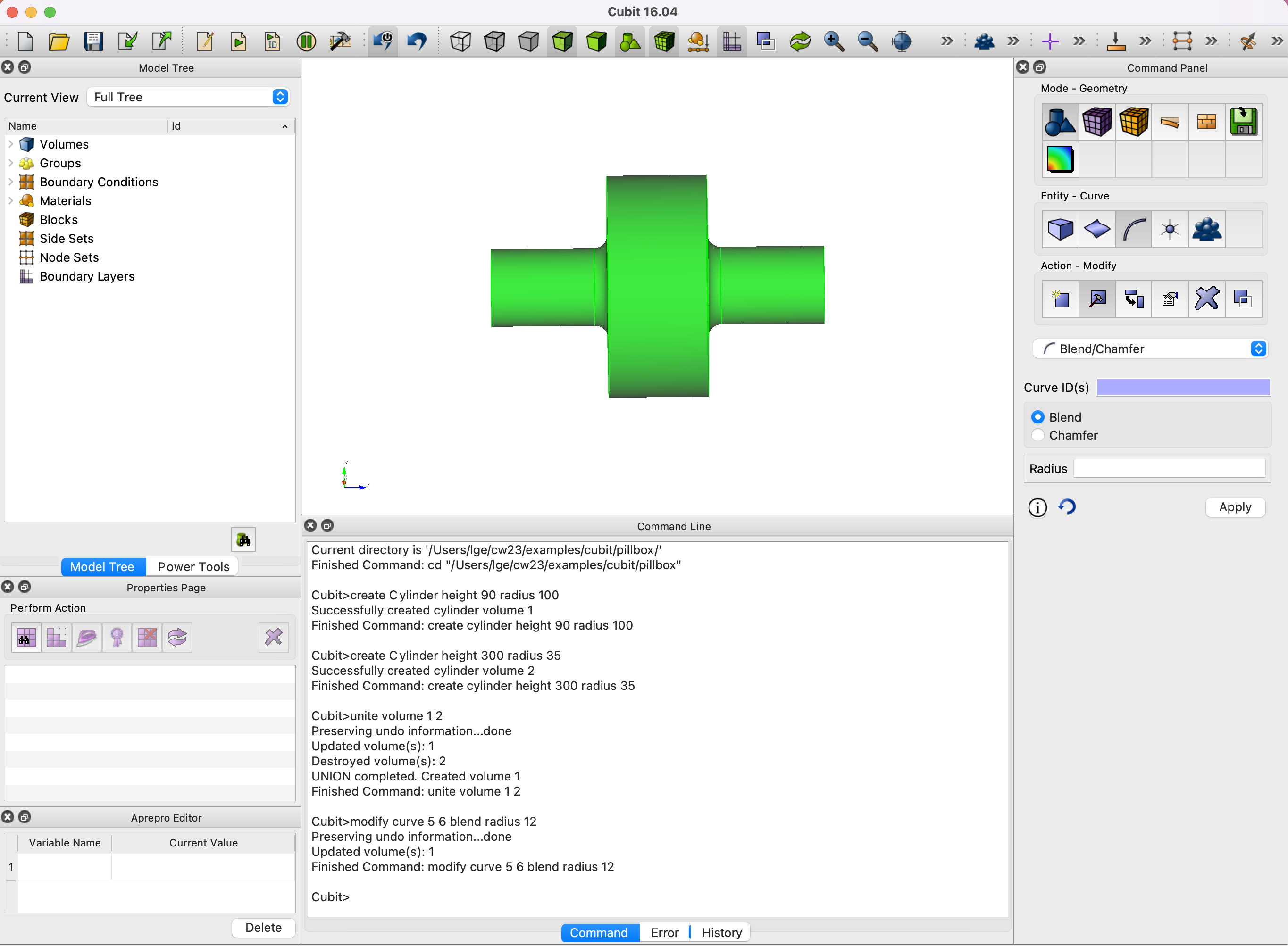

The full model. The command line records every step taken through the GUI, which is what you will collect into a journal file.

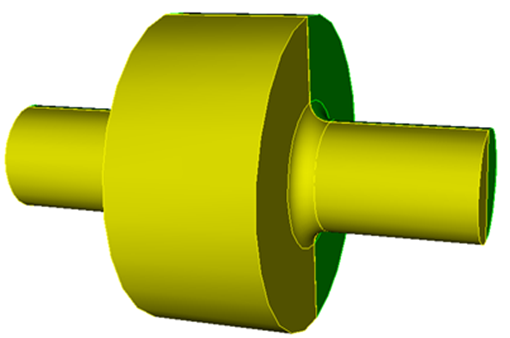

Cut to a quarter

Omega3P needs only the symmetric quarter. Entity Volume, Action Webcut, Coordinate Plane, volume 1, YZ plane, offset 0, Apply, then delete the half you do not want:

webcut volume 1 with plane xplane offset 0 noimprint nomerge
delete volume 2
compress ids
webcut volume 1 with plane yplane offset 0 noimprint nomerge
delete volume 1
compress ids

Which half to delete depends on which side of the plane Cubit numbered as volume 2; check the Model Tree or click the body. Webcutting also has cylindrical, extended-surface, and tool-body variants for more complex cuts.

Export

File, Export, choose ACIS .sat, name it pillbox, Export All, Finish:

export acis "pillbox.sat" overwrite

ACIS is Cubit's native solid format and preserves exact geometry. Keep the .sat file; it is the input to the meshing step and to any later modification.

The same model as a journal file

Every command above is in the Command Line's Command tab. Tools, then Journal Editor, then File, Import, Command Tab pulls them into an editor. Clean up, parameterize, and save as step1-Make-pillbox.jou:

step1-Make-pillbox.jou

reset

#{cav_length = 90}
#{cav_radius = 100}
#{bp_length  = 300}
#{bp_radius  = 35}
#{iris_rounding = 12}

create Cylinder height {cav_length} radius {cav_radius}
create Cylinder height {bp_length} radius {bp_radius}
unite volume 1 2
compress ids
modify curve 6 5 blend radius {iris_rounding}

webcut volume 1 with plane xplane offset 0 noimprint nomerge
delete volume 2
compress ids
webcut volume 1 with plane yplane offset 0 noimprint nomerge
delete volume 1
compress ids

export acis "pillbox.sat" overwrite

Three edits turn a transcript into a reusable script:

• reset at the top clears the session so the journal gives the same result every time.
• #{name = value} variables replace literal numbers, so a dimension changes in one place. Expressions like {0.5*cav_length} are allowed.
• overwrite on the export so replaying does not stop at a prompt.

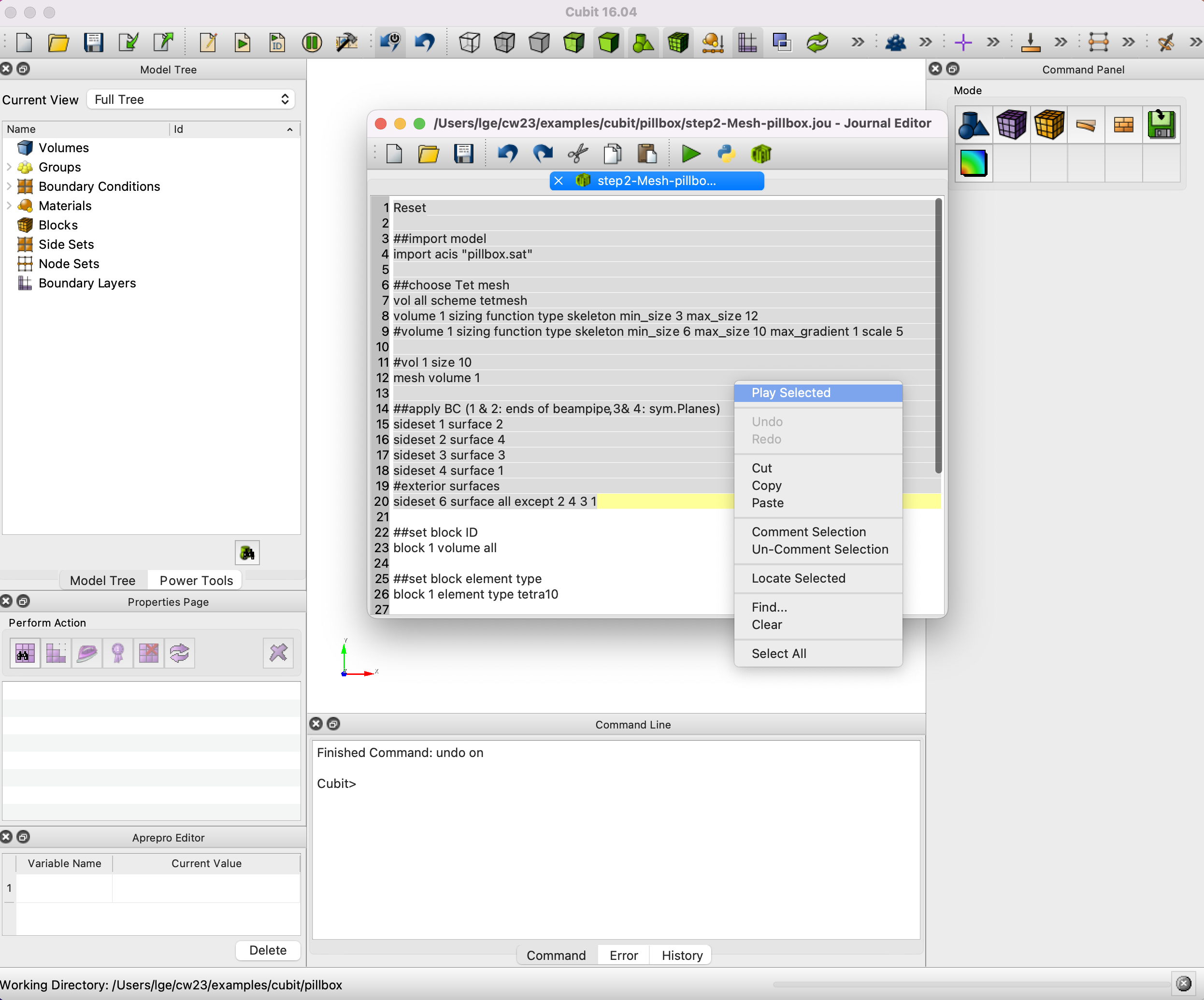

Play it with the Play Journal File toolbar button, or from the Journal Editor, or by typing playback "step1-Make-pillbox.jou". The Journal Editor can also play a selection: highlight lines, right-click, Play Selected. That is the way to debug a journal step by step.

Entity IDs are not stable across Cubit versions or geometry changes

modify curve 5 6 works because of how Cubit numbered the curves after this particular unite. Change a dimension, reorder operations, or move to a different Cubit release and the iris curves may be 7 and 8. When a journal fails at a blend or sideset command, click the entity in the graphics window to find its current ID. Cubit's journal idless on mode records commands by coordinates instead of IDs and avoids the problem at the cost of readability.

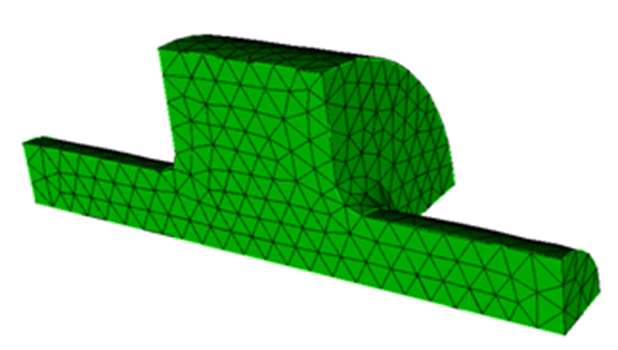

Meshing

ACE3P uses quadratic tetrahedral elements, tetra10, whose mid-edge nodes follow curved surfaces. The meshing journal imports the .sat, sets the scheme, chooses a size, meshes, assigns sidesets and blocks, scales, and exports.

step2-Mesh-pillbox.jou

reset
import acis "pillbox.sat"

volume all scheme tetmesh
volume 1 sizing function type skeleton min_size 3 max_size 12
mesh volume 1

# 1 and 2: beam pipe ends, 3 and 4: symmetry planes
sideset 1 surface 2
sideset 2 surface 4
sideset 3 surface 3
sideset 4 surface 1
sideset 6 surface all except 2 4 3 1

block 1 volume all
block 1 element type tetra10

volume 1 scale 0.001
export genesis "pillbox.gen" overwrite

quality vol all distortion high 0.0 draw mesh

Open it in the Journal Editor and play it line by line the first time so you can inspect each stage.

Element size

Two choices:

UniformAdaptive (skeleton sizing)

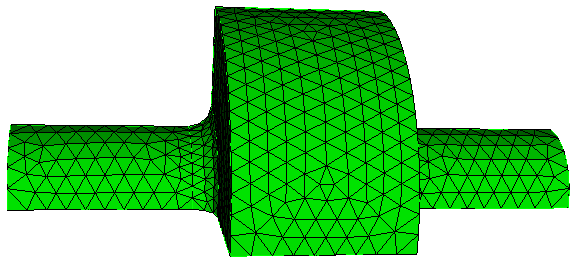

volume 1 size 10
mesh volume 1

Every element about 10 mm. Simple and predictable. Generate meshes at several sizes and run a convergence study.

volume 1 sizing function type skeleton min_size 3 max_size 12 max_gradient 1.2 scale 5
mesh volume 1

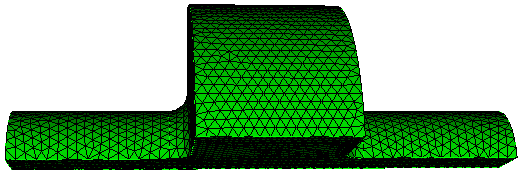

Element size follows local geometry: fine at the iris rounding, coarse along the pipe. Parameters:

Argument	Range and default	Effect
min_size, max_size	auto	Bounds on edge length in model units
max_gradient	1.0 to 3.0, default 1.5	How fast size may change between neighbors. Smaller gives smoother transitions and more elements.
scale	1 to 10, default 7	Overall density. Smaller is finer.
time_accuracy_level	1 to 3, default 2	Internal effort of the sizing function. Try higher levels only if the mesh is poor.

To try a different size, delete the mesh first: delete mesh volume 1, or Mode Mesh, Entity Volume, Action Delete in the panel.

Sidesets and blocks

A sideset groups surfaces and becomes a boundary ID in ACE3P. A block groups volumes and becomes a material attribute. Both are set under Mode Exodus in the Command Panel, or by command:

sideset 1 surface 2
block 1 volume all

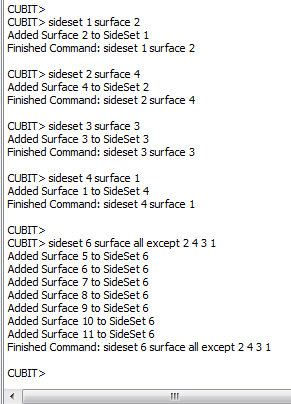

Find surface IDs by clicking in the graphics window. The idiom sideset 6 surface all except 2 4 3 1 assigns every surface not already named to the wall, so nothing is left without a boundary ID. The command line confirms what each sideset received:

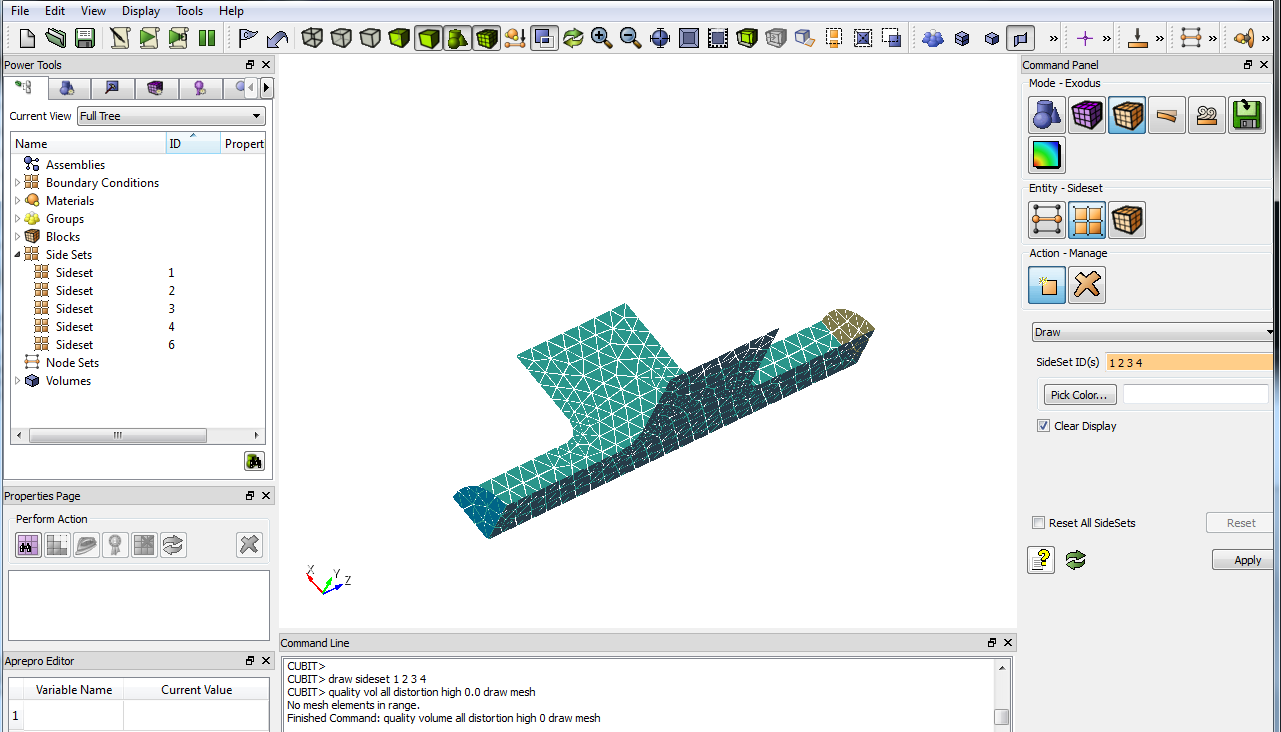

Check the assignment visually with draw sideset 1 2 3 4, which shows only those surfaces:

For models with many surfaces, Cubit groups make sideset assignment robust. See the window example in the S3P tutorials and the two-mesh models in the TEM3P tutorials, which select surfaces by coordinate and by merge status:

group "sym1" add surface with x_coord < 0.001
group "ms"   add surface with is_merged

Quality check in Cubit

The last line of the journal, quality vol all distortion high 0.0 draw mesh, colors elements by distortion. Reading "No mesh elements in range" in the command line means none are badly distorted. The definitive check is acdtool meshconvert on the HPC side, described on the mesh preparation page.

Tips for harder models

• Check and heal imported CAD first. Power Tools has geometry diagnostics; import acis "file.sat" heal repairs common defects. Small sliver surfaces and short curves are the usual meshing failures.
• Imprint and merge multi-volume models before meshing: imprint body all then merge body all. Without merging, touching volumes have duplicate faces and the mesh is disconnected. The lossy load tutorial shows the consequence.
• Mesh small or critical surfaces first with their own size, then the volume: surface 14 size 0.5 then mesh surface 14 then mesh volume 3. The BPM example in the T3P tutorials does this for a button face.
• Split a volume to control size regionally. Webcut a volume into pieces, give each its own sizing function, and merge. The TTF3 coupler in the TEM3P example separates five materials this way.
• Smooth the transition from fine to coarse regions with max_gradient near 1.2. Abrupt size changes degrade element quality and the finite-element solution.
• Periodic faces need identical meshes. Mesh the master face, copy it to the slave with copy mesh surface ... onto surface ..., then mesh the volume without smoothing. The periodic boundary tutorial shows the commands.
• Start coarse. A quick coarse mesh reveals sideset mistakes and geometry problems before you invest in a fine one.

When acdtool reports bad elements

If acdtool meshconvert finds invalid second-order tetrahedra, it replaces them with straight-sided ones and writes a warning. If it finds elements with poor aspect ratio or shape measure, it writes .vtu files marking them. Load the .ncdf through the SLAC toolbar in ParaView, then File, Open the .vtu, color it red, and make the mesh translucent to see where to refine.

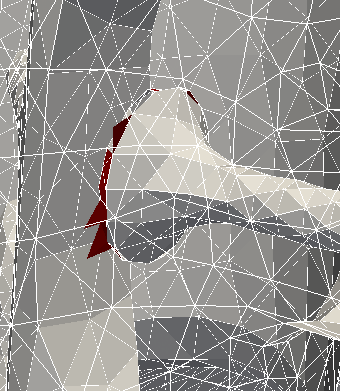

Invalid elements, in red, clustered where a curved surface meets a flat one at a sharp angle. Finer min_size or a blend on the edge fixes this.

Cubit on S3DF

A licensed Cubit 16.12 is installed at /sdf/group/rfar/software/Cubit-16.12/. Run the GUI through a NoMachine desktop or ssh -X, or play a journal with no display:

/sdf/group/rfar/software/Cubit-16.12/cubit -batch -nographics -input step2-Mesh-pillbox.jou

Batch mode is what a workflow engine calls when meshing is one step in an automated chain. See the workflow assistant page.
