T3P command syntax¶

Block-by-block description of the .t3p input file. Worked cases are in the T3P module guide.

Top-level blocks: ModelInfo, FiniteElement, PRegion, LoadingInfo, Loading, TimeStepping, Monitor, LinearSolver, CheckPoint.

ModelInfo¶

As in Omega3P with these differences.

Boundary types: Electric, Magnetic, Exterior, Absorbing, Waveguide (broadband, dispersive), Impedance.

Material gains time-domain options:

Material : {
  Attribute: 1
  Epsilon:   35.83
  Mu:        1.0
  Sigma:     0.316           // bulk conductivity, S/m, frequency independent
  Chi2:      ...             // second-order nonlinear susceptibility
  Chi3:      ...             // third-order nonlinear susceptibility
  Dispersion : {             // Lorentz model; only one dispersive material allowed
    Type:    Lorentz
    Omega_0: ...             // resonance angular frequency
    Omega_p: ...             // resonant strength
    Gamma:   ...             // decay rate
    Eps_inf: ...             // high-frequency permittivity
  }
}

The Lorentz permittivity is

\[ \varepsilon(\omega) = \varepsilon_\infty + \frac{\omega_p^2}{\omega_0^2 - \omega^2 + j\omega\gamma} \]

SurfaceMaterial takes Frequency and an optional Coating as in S3P. The Impedance boundary with a SurfaceMaterial is also what the SurfacePowerLoss monitor reads.

PML is as in Omega3P, with Polynomial Order typically 3 in time domain.

FiniteElement and PRegion¶

Order and CurvedSurfaces as elsewhere. For the moving window, set the global order to 0 and define the window:

FiniteElement : { Order: 0  CurvedSurfaces: on }
PRegion : {
  Type:         AutomaticMovingWindow
  Order:        2
  Back:         0.001          // m behind the bunch
  Front:        0.002          // m ahead
  StructureEnd: 0.0689         // z where the window stops moving
}

The window spans Back plus the bunch length plus Front. When the bunch reaches the front of the window a new window is created and the system matrix is reassembled, so a very short window saves per-step cost but adds reassembly cost. The wake is valid only up to about Back behind the bunch.

LoadingInfo¶

Beam excitation by a rigid bunch moving at c along z.

LoadingInfo : {
  Bunch : {
    Type:             Gaussian
    Sigma:            0.01            // m
    Number of sigmas: 5
    Charge:           1e-12           // C
  }
  SymmetryFactor:  4.0
  StartPoint:      0 0 -0.10
  Direction:       0 0 1
  BoundaryID:      3
  StartTime:       1.e-9              // optional, s
  NumBunches:      2                  // optional, bunch train
  BunchSeparation: 0.1                // optional, m
}

Bunch shapes:

`Type`	Keys
`Gaussian`	`Sigma`, `Number of sigmas` (or `Nsigmas`). Total length 2 × Sigma × Number of sigmas.
`BiGaussian`	`Sigma1` (front), `Sigma2` (back), `Number of sigmas`. Asymmetric.
`Flattop`	`Rise sigma`, `Number of rise sigma`, `Drop sigma`, `Number of drop sigma`, `Flattop width`. Half-Gaussian edges on a flat top.

Key	Meaning
`SymmetryFactor`	2 if the beam lies on one magnetic symmetry plane, 4 at the corner of two. Scales the effective charge in the domain.
`StartPoint`, `Direction`	Entry point and direction; only z is allowed
`BoundaryID`	Surface the beam enters through; make it `Absorbing`
`StartTime`	Injection time of this bunch, default 0
`NumBunches`, `BunchSeparation`	A train of identical bunches spaced in m

Several LoadingInfo blocks give several independent bunches, used for dipole excitation with opposite charges.

Loading¶

Dipole, port, and surface excitation.

DipoleLoadingPortModeLoadingSurfaceLoading

Loading : {
  Type:       DipoleLoading
  Coordinate: 0.0001, 0.00001, 0.
  Direction:  0.0, 0.0, 1.0
  Tolerance:  0.001
  Excitation : {
    Power: 1.                        // dipole moment, A·m
    Pulse : { ... }                  // see Pulse below
  }
}

Loading : {
  Type: PortModeLoading
  Port : {
    ReferenceNumber: 3
    SymmetricFactor: 4               // 1 none, 2 one plane, 4 two planes
    NumberOfModes:   1
  }
  Excitation : { Power: 1.  Pulse : { ... } }
}

The port surface is Absorbing in ModelInfo so outgoing waves leave. Port modes are solved numerically, or imported from files:

Port : {
  ReferenceNumber: 3
  Origin:     0.0 0.0 -1.928
  XDirection: 1.0 0.0 0.0
  YDirection: 0.0 1.0 0.0
  ESolver : {
    Type: Interpolative
    Mode : { ExFile: Ex.prn  EyFile: Ey.prn  BxFile: Bx.prn  ByFile: By.prn }
  }
}

Each file is a table of ix iy x y F on an M×N grid, rows advancing ix fastest, E in V/m and B in T.

Loading : {
  Type:            SurfaceLoading
  ReferenceNumber: 4
  InputFile:       TM01.prn
  Excitation : { Mode number: 1  Power: 1.  Pulse : { ... } }
}

A user field map on a curved Absorbing surface, given on a (θ, φ) grid as ix iy theta phi Ex Ey Ez Bx By Bz, angles in radians.

Pulse¶

`Type`	Keys
`Gaussian`	`Frequency` (carrier, Hz), `Bandwidth` (Hz), `DB` (truncation below peak), `T0` (delay in sigmas), `Phase` (degrees)
`Monochromatic`	`Frequency`, `Rise periods` (cycles to full amplitude), `Fall periods` (optional), `T0` (start time, s), `TMax` (total duration, s, optional)
`UserDefinedPulse`	`T0` (time offset, s), `Scaling`, `Frequency` (for port-mode evaluation, Hz), `File`: two-column text, time and amplitude

Note that SymmetricFactor inside Loading.Port is spelled differently from SymmetryFactor in LoadingInfo. Both are as the code reads them.

TimeStepping¶

TimeStepping : {
  MaximumTime: 3.0e-9
  DT:          1e-12
}

Both in seconds. The implicit scheme is unconditionally stable, so DT is set by the frequency content to be resolved.

Monitor¶

`Type`	Keys	Output
`Point`	`Name`, `Coordinate`	`<Name>.out`: t, H_x H_y H_z, E_x E_y E_z in SI
`Volume`	`Name`, `TimeStart`, `TimeEnd`, `TimeStep`	`<Name>ts_t<time>ps.out.mod` snapshots for ParaView
`WakeField`	`Name`, `StartContour`, `EndContour`, `Smax`, optional `Grid`	`<Name>.out`: s, W(s) in V/C, I(s) in A/m, with loss or kick factor in the header
`Power`	`Name`, `ReferenceNumber`, optional `TimeStart`, `TimeEnd`, `TimeStep`	`<Name>.out`: t, power through the surface in W
`SurfacePowerLoss`	`Name`, `ReferenceNumber`	`<Name>.out`: t, ohmic loss on the surface in W. Needs a `SurfaceMaterial` on that surface.
`ModeVoltage`	`Name`, `Port` with `ReferenceNumber` and `ESolver` (`Type: Numerical2D`, `NumberOfModes`, `Frequency`, `Tolerance`, `MaxIterations`)	`<Name>.out`: t, modal voltage in V

WakeField details¶

StartContour and EndContour bound the integration in z and default to the model ends. Smax is the wake length recorded and is limited by causality: with model length L and downstream pipe length l, the maximum is c × MaximumTime − (L − l).

The default is indirect (Weiland) integration along the beam-pipe boundary, valid when only vacuum is visible from pipe end to pipe end. The wake is computed at the beam's transverse position; for other positions use acdtool postprocess wake_new, and for transverse wakes acdtool postprocess transwake.

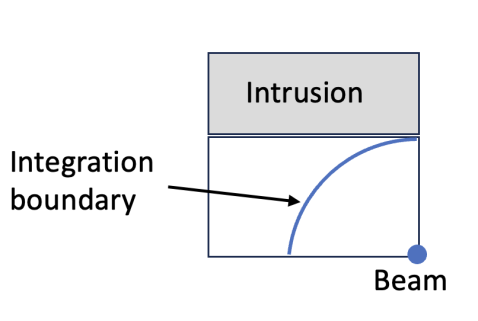

For collimator-like structures with intrusions, use direct integration along a circle inside the vacuum:

Monitor : {
  Type: WakeField
  Name: wakefield
  StartContour: 0.
  EndContour:   0.6
  Smax:         0.10
  Grid : {
    Method:     Circle
    Radius:     0.0149       // m
    NPoints:    10
    StartDense: 0            // degrees
    EndDense:   90
    Fraction:   1
  }
}

Direct integration boundary

A long downstream catch-up distance is needed for convergence. acdtool postprocess wake_direct evaluates it at other positions.

LinearSolver¶

LinearSolver : { Solver: MUMPS }
LinearSolver : { Solver: CG  Preconditioner: CHOLESKY }

MUMPS, direct, for small problems. CG with CHOLESKY or DIAGONAL for large ones. A missing or misspelled Solver key gives the compiled-in default, MUMPS on the SLAC and NERSC builds.

CheckPoint¶

CheckPoint : {
  Action:     restart        // none or restart; restart is default
  Ntimesteps: 700            // interval, default 1000
}

Resubmitting a run with restart continues from the last checkpoint. To extend a finished run, raise MaximumTime and resubmit.
