Gtx7QuadPll Entity Reference
xilinx » 7Series » gtx7
+ Inheritance diagram for Gtx7QuadPll:

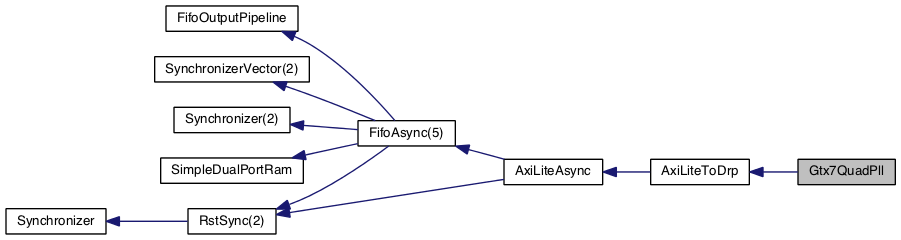

+ Collaboration diagram for Gtx7QuadPll:

Entities

mapping  architecture


Libraries

ieee
unisim

Use Clauses

std_logic_1164
numeric_std
StdRtlPkg  Package <StdRtlPkg>
AxiLitePkg  Package <AxiLitePkg>
vcomponents

Generics

TPD_G  time := 1 ns
AXI_ERROR_RESP_G  slv ( 1 downto 0 ) := AXI_RESP_DECERR_C
SIM_RESET_SPEEDUP_G  string := " TRUE "
SIM_VERSION_G  string := " 4.0 "
QPLL_CFG_G  bit_vector := x " 0680181 "
QPLL_REFCLK_SEL_G  bit_vector := " 001 "
QPLL_FBDIV_G  bit_vector := " 0100100000 "
QPLL_FBDIV_RATIO_G  bit := ' 1 '
QPLL_REFCLK_DIV_G  integer := 1

Ports

qPllRefClk   in sl
qPllOutClk   out sl
qPllOutRefClk   out sl
qPllLock   out sl
qPllLockDetClk   in sl
qPllRefClkLost   out sl
qPllPowerDown   in sl := ' 0 '
qPllReset   in sl
axilClk   in sl := ' 0 '
axilRst   in sl := ' 0 '
axilReadMaster   in AxiLiteReadMasterType := AXI_LITE_READ_MASTER_INIT_C
axilReadSlave   out AxiLiteReadSlaveType
axilWriteMaster   in AxiLiteWriteMasterType := AXI_LITE_WRITE_MASTER_INIT_C
axilWriteSlave   out AxiLiteWriteSlaveType

Detailed Description

See also
entity

Definition at line 30 of file Gtx7QuadPll.vhd.

Member Data Documentation

◆ TPD_G

TPD_G time := 1 ns
Generic

Definition at line 32 of file Gtx7QuadPll.vhd.

◆ AXI_ERROR_RESP_G

AXI_ERROR_RESP_G slv ( 1 downto 0 ) := AXI_RESP_DECERR_C
Generic

Definition at line 33 of file Gtx7QuadPll.vhd.

◆ SIM_RESET_SPEEDUP_G

SIM_RESET_SPEEDUP_G string := " TRUE "
Generic

Definition at line 34 of file Gtx7QuadPll.vhd.

◆ SIM_VERSION_G

SIM_VERSION_G string := " 4.0 "
Generic

Definition at line 35 of file Gtx7QuadPll.vhd.

◆ QPLL_CFG_G

QPLL_CFG_G bit_vector := x " 0680181 "
Generic

Definition at line 36 of file Gtx7QuadPll.vhd.

◆ QPLL_REFCLK_SEL_G

QPLL_REFCLK_SEL_G bit_vector := " 001 "
Generic

Definition at line 37 of file Gtx7QuadPll.vhd.

◆ QPLL_FBDIV_G

QPLL_FBDIV_G bit_vector := " 0100100000 "
Generic

Definition at line 38 of file Gtx7QuadPll.vhd.

◆ QPLL_FBDIV_RATIO_G

QPLL_FBDIV_RATIO_G bit := ' 1 '
Generic

Definition at line 39 of file Gtx7QuadPll.vhd.

◆ QPLL_REFCLK_DIV_G

QPLL_REFCLK_DIV_G integer := 1
Generic

Definition at line 40 of file Gtx7QuadPll.vhd.

◆ qPllRefClk

qPllRefClk in sl
Port

Definition at line 42 of file Gtx7QuadPll.vhd.

◆ qPllOutClk

qPllOutClk out sl
Port

Definition at line 43 of file Gtx7QuadPll.vhd.

◆ qPllOutRefClk

qPllOutRefClk out sl
Port

Definition at line 44 of file Gtx7QuadPll.vhd.

◆ qPllLock

qPllLock out sl
Port

Definition at line 45 of file Gtx7QuadPll.vhd.

◆ qPllLockDetClk

qPllLockDetClk in sl
Port

Definition at line 46 of file Gtx7QuadPll.vhd.

◆ qPllRefClkLost

qPllRefClkLost out sl
Port

Definition at line 47 of file Gtx7QuadPll.vhd.

◆ qPllPowerDown

qPllPowerDown in sl := ' 0 '
Port

Definition at line 48 of file Gtx7QuadPll.vhd.

◆ qPllReset

qPllReset in sl
Port

Definition at line 49 of file Gtx7QuadPll.vhd.

◆ axilClk

axilClk in sl := ' 0 '
Port

Definition at line 51 of file Gtx7QuadPll.vhd.

◆ axilRst

axilRst in sl := ' 0 '
Port

Definition at line 52 of file Gtx7QuadPll.vhd.

◆ axilReadMaster

axilReadMaster in AxiLiteReadMasterType := AXI_LITE_READ_MASTER_INIT_C
Port

Definition at line 53 of file Gtx7QuadPll.vhd.

◆ axilReadSlave

axilReadSlave out AxiLiteReadSlaveType
Port

Definition at line 54 of file Gtx7QuadPll.vhd.

◆ axilWriteMaster

axilWriteMaster in AxiLiteWriteMasterType := AXI_LITE_WRITE_MASTER_INIT_C
Port

Definition at line 55 of file Gtx7QuadPll.vhd.

◆ axilWriteSlave

axilWriteSlave out AxiLiteWriteSlaveType
Port

Definition at line 56 of file Gtx7QuadPll.vhd.

◆ ieee

ieee
Library

Definition at line 18 of file Gtx7QuadPll.vhd.

◆ std_logic_1164

std_logic_1164
Package

Definition at line 19 of file Gtx7QuadPll.vhd.

◆ numeric_std

numeric_std
Package

Definition at line 20 of file Gtx7QuadPll.vhd.

◆ StdRtlPkg

StdRtlPkg
Package

Definition at line 22 of file Gtx7QuadPll.vhd.

◆ AxiLitePkg

AxiLitePkg
Package

Definition at line 23 of file Gtx7QuadPll.vhd.

◆ unisim

unisim
Library

Definition at line 25 of file Gtx7QuadPll.vhd.

◆ vcomponents

vcomponents
Package

Definition at line 26 of file Gtx7QuadPll.vhd.
