Internal Boost.Python wrapper for rogue::interfaces::memory::Hub. Enables Python subclasses to override virtual transaction handling. More...

#include <Hub.h>

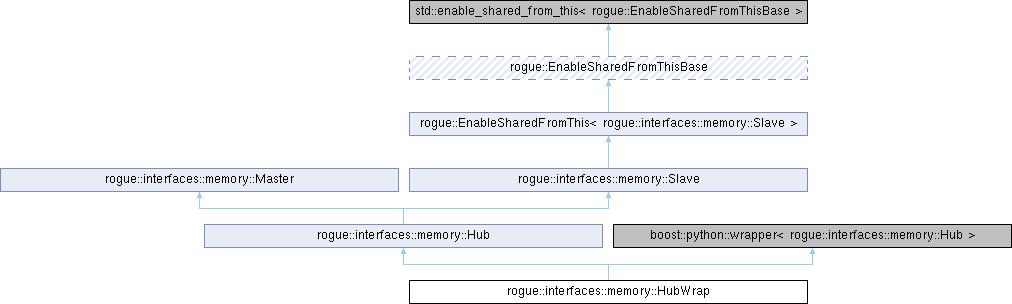

Inheritance diagram for rogue::interfaces::memory::HubWrap:

Public Member Functions
	HubWrap (uint64_t offset, uint32_t min, uint32_t max)
	Constructs a hub wrapper instance.

void	doTransaction (std::shared_ptr< rogue::interfaces::memory::Transaction > transaction)
	Services a transaction request from an attached master.

void	defDoTransaction (std::shared_ptr< rogue::interfaces::memory::Transaction > transaction)
	Calls the base-class `doTransaction()` implementation.

Public Member Functions inherited from rogue::interfaces::memory::Hub
	Hub (uint64_t offset, uint32_t min, uint32_t max)
	Constructs a Hub with optional virtual-root access constraints.

	~Hub ()
	Destroy a block.

uint64_t	getOffset ()
	Returns the local offset of this hub.

uint64_t	getAddress ()
	Returns the full address of this hub, including local offset.

uint32_t	doSlaveId ()
	Services `getSlaveId` request from an attached master.

std::string	doSlaveName ()
	Services `getSlaveName` request from an attached master.

uint32_t	doMinAccess ()
	Services `getMinAccess` request from an attached master.

uint32_t	doMaxAccess ()
	Services `getMaxAccess` request from an attached master.

uint64_t	doAddress ()
	Services `getAddress` request from an attached master.

Public Member Functions inherited from rogue::interfaces::memory::Master
	Master ()
	Constructs a memory master instance.

virtual	~Master ()
	Destroys the memory master instance.

virtual void	stop ()
	Stops the interface and releases runtime resources.

void	setSlave (std::shared_ptr< rogue::interfaces::memory::Slave > slave)
	Sets the downstream slave or hub.

std::shared_ptr< rogue::interfaces::memory::Slave >	getSlave ()
	Returns the configured downstream slave or hub.

uint32_t	reqSlaveId ()
	Queries the downstream slave ID.

std::string	reqSlaveName ()
	Queries the downstream slave name.

uint32_t	reqMinAccess ()
	Queries minimum access size in bytes for this interface path.

uint32_t	reqMaxAccess ()
	Queries maximum access size in bytes for this interface path.

uint64_t	reqAddress ()
	Queries the address offset of the next downstream layer.

std::string	getError ()
	Returns the last transaction error string.

void	clearError ()
	Clears the stored transaction error string.

void	setTimeout (uint64_t timeout)
	Sets the timeout value for future transactions.

uint32_t	reqTransaction (uint64_t address, uint32_t size, void *data, uint32_t type)
	Starts a new transaction.

uint32_t	reqTransactionPy (uint64_t address, boost::python::object p, uint32_t size, uint32_t offset, uint32_t type)
	Python variant of `reqTransaction`.

void	rshiftPy (boost::python::object p)
	Supports `>>` operator usage from Python.

std::shared_ptr< rogue::interfaces::memory::Slave > &	operator>> (std::shared_ptr< rogue::interfaces::memory::Slave > &other)
	Connects this master to a slave via stream chaining operator.

void	waitTransaction (uint32_t id)
	Waits for transaction completion or timeout.

Public Member Functions inherited from rogue::interfaces::memory::Slave
	Slave (uint32_t min, uint32_t max)
	Constructs a memory slave.

virtual	~Slave ()
	Destroys the memory slave instance.

virtual void	stop ()
	Stops the memory slave interface.

void	addTransaction (std::shared_ptr< rogue::interfaces::memory::Transaction > transaction)
	Adds a transaction to the internal tracking map.

std::shared_ptr< rogue::interfaces::memory::Transaction >	getTransaction (uint32_t index)
	Gets a transaction from the internal tracking map.

uint32_t	min ()
	Returns configured minimum transaction size.

uint32_t	max ()
	Returns configured maximum transaction size.

uint32_t	id ()
	Returns unique slave ID.

void	setName (std::string name)
	Sets slave name.

std::string	name ()
	Returns slave name.

void	lshiftPy (boost::python::object p)
	Supports `<<` operator usage from Python.

std::shared_ptr< rogue::interfaces::memory::Master > &	operator<< (std::shared_ptr< rogue::interfaces::memory::Master > &other)
	Connects this slave to a master via chaining operator.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::memory::Slave >
std::shared_ptr< rogue::interfaces::memory::Slave >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThisBase
virtual	~EnableSharedFromThisBase ()
	Virtual destructor for polymorphic base usage.

Additional Inherited Members
Static Public Member Functions inherited from rogue::interfaces::memory::Hub
static std::shared_ptr< rogue::interfaces::memory::Hub >	create (uint64_t offset, uint32_t min, uint32_t max)
	Creates a memory Hub.

static void	setup_python ()

Static Public Member Functions inherited from rogue::interfaces::memory::Master
static std::shared_ptr< rogue::interfaces::memory::Master >	create ()
	Creates a memory master instance.

static void	setup_python ()
	Registers this type with Python bindings.

static void	copyBits (uint8_t dstData, uint32_t dstLsb, uint8_t srcData, uint32_t srcLsb, uint32_t size)
	Copies bits between two byte arrays.

static void	copyBitsPy (boost::python::object dst, uint32_t dstLsb, boost::python::object src, uint32_t srcLsb, uint32_t size)
	Python wrapper for `copyBits`.

static void	setBits (uint8_t *dstData, uint32_t lsb, uint32_t size)
	Sets a contiguous bit range in a byte array.

static void	setBitsPy (boost::python::object dst, uint32_t lsb, uint32_t size)
	Python wrapper for `setBits`.

static bool	anyBits (uint8_t *srcData, uint32_t lsb, uint32_t size)
	Tests whether any bit in a range is set.

static bool	anyBitsPy (boost::python::object src, uint32_t lsb, uint32_t size)
	Python wrapper for `anyBits`.

Static Public Member Functions inherited from rogue::interfaces::memory::Slave
static std::shared_ptr< rogue::interfaces::memory::Slave >	create (uint32_t min, uint32_t max)
	Creates a memory slave.

static void	setup_python ()
	Registers this type with Python bindings.

Protected Member Functions inherited from rogue::interfaces::memory::Master
uint32_t	intTransaction (std::shared_ptr< rogue::interfaces::memory::Transaction > tran)
	Starts an internal transaction from an existing transaction object.

Detailed Description

Internal Boost.Python wrapper for rogue::interfaces::memory::Hub. Enables Python subclasses to override virtual transaction handling.

This wrapper is an internal binding adapter and not a primary C++ API surface. It is registered by setup_python() under the base class name.

Definition at line 242 of file Hub.h.

Constructor & Destructor Documentation

◆ HubWrap()

rogue::interfaces::memory::HubWrap::HubWrap	(	uint64_t	offset,
		uint32_t	min,
		uint32_t	max
	)

Constructs a hub wrapper instance.

Constructor.

Parameters

offset	Local address offset applied by this hub.
min	Minimum transaction size for virtual-root mode.
max	Maximum transaction size for virtual-root mode.

Definition at line 173 of file Hub.cpp.

Member Function Documentation

◆ defDoTransaction()

void rogue::interfaces::memory::HubWrap::defDoTransaction ( std::shared_ptr< rogue::interfaces::memory::Transaction > transaction )

Calls the base-class doTransaction() implementation.

Post a transaction. Master will call this method with the access attributes.

Used as the fallback when no Python override is present.

Parameters

transaction Transaction object to process.

Definition at line 193 of file Hub.cpp.

◆ doTransaction()

void rogue::interfaces::memory::HubWrap::doTransaction ( std::shared_ptr< rogue::interfaces::memory::Transaction > transaction )

virtual

Services a transaction request from an attached master.

Post a transaction. Master will call this method with the access attributes.

Invokes the Python override when provided.

Parameters

transaction Transaction object to process.

Reimplemented from rogue::interfaces::memory::Hub.

Definition at line 176 of file Hub.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/rogue/rogue/include/rogue/interfaces/memory/Hub.h
/home/runner/work/rogue/rogue/src/rogue/interfaces/memory/Hub.cpp
