SyncStatusVector Entity Reference

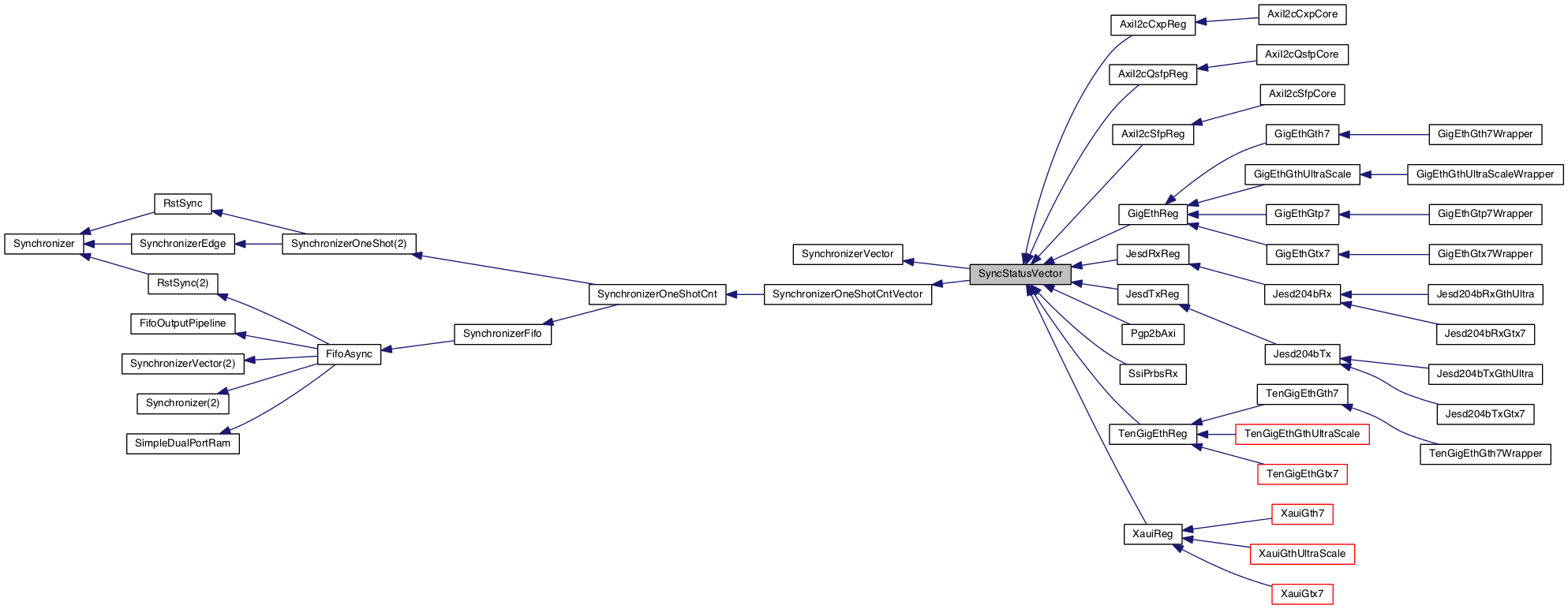

Inheritance diagram for SyncStatusVector:

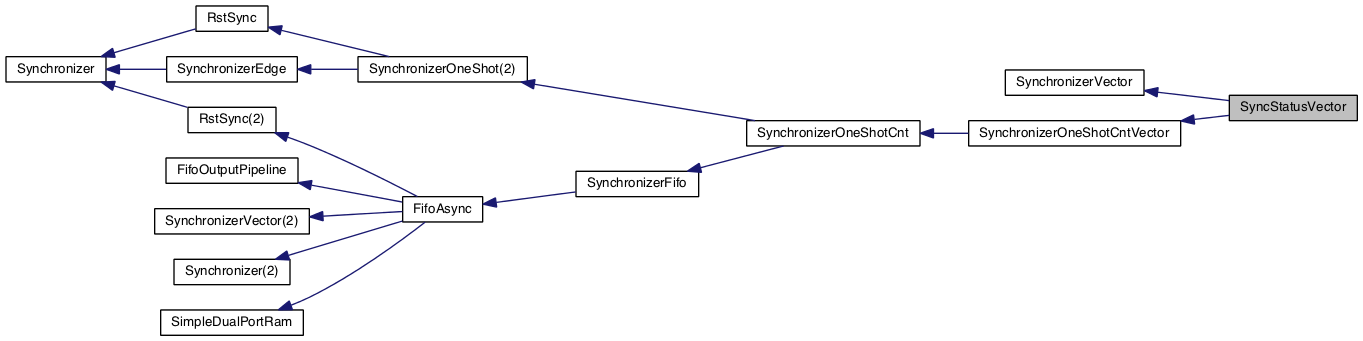

Collaboration diagram for SyncStatusVector:

Entities
rtl	architecture

Libraries
ieee

Use Clauses
std_logic_1164
std_logic_unsigned
std_logic_arith
StdRtlPkg	Package <StdRtlPkg>

Generics
TPD_G	time := 1 ns
RST_POLARITY_G	sl := ' 1 '
RST_ASYNC_G	boolean := false
COMMON_CLK_G	boolean := false
RELEASE_DELAY_G	positive := 3
IN_POLARITY_G	slv := " 1 "
OUT_POLARITY_G	sl := ' 1 '
USE_DSP48_G	string := " no "
SYNTH_CNT_G	slv := " 1 "
CNT_RST_EDGE_G	boolean := true
CNT_WIDTH_G	positive := 32
WIDTH_G	positive := 16

Ports
statusIn	in slv ( WIDTH_G - 1 downto 0 )
statusOut	out slv ( WIDTH_G - 1 downto 0 )
cntRstIn	in sl
rollOverEnIn	in slv ( WIDTH_G - 1 downto 0 ) := ( others = > ' 0 ' )
cntOut	out SlVectorArray ( WIDTH_G - 1 downto 0 , CNT_WIDTH_G - 1 downto 0 )
irqEnIn	in slv ( WIDTH_G - 1 downto 0 ) := ( others = > ' 0 ' )
irqOut	out sl
wrClk	in sl
wrRst	in sl := ' 0 '
rdClk	in sl
rdRst	in sl := ' 0 '

Detailed Description

See also

entity

Definition at line 27 of file SyncStatusVector.vhd.

Member Data Documentation

TPD_G

TPD_G time := 1 ns

Generic

Definition at line 29 of file SyncStatusVector.vhd.

RST_POLARITY_G

RST_POLARITY_G sl := ' 1 '

Generic

Definition at line 30 of file SyncStatusVector.vhd.

RST_ASYNC_G

RST_ASYNC_G boolean := false

Generic

Definition at line 31 of file SyncStatusVector.vhd.

COMMON_CLK_G

COMMON_CLK_G boolean := false

Generic

Definition at line 32 of file SyncStatusVector.vhd.

RELEASE_DELAY_G

RELEASE_DELAY_G positive := 3

Generic

Definition at line 33 of file SyncStatusVector.vhd.

IN_POLARITY_G

IN_POLARITY_G slv := " 1 "

Generic

Definition at line 34 of file SyncStatusVector.vhd.

OUT_POLARITY_G

OUT_POLARITY_G sl := ' 1 '

Generic

Definition at line 35 of file SyncStatusVector.vhd.

USE_DSP48_G

USE_DSP48_G string := " no "

Generic

Definition at line 36 of file SyncStatusVector.vhd.

SYNTH_CNT_G

SYNTH_CNT_G slv := " 1 "

Generic

Definition at line 37 of file SyncStatusVector.vhd.

CNT_RST_EDGE_G

CNT_RST_EDGE_G boolean := true

Generic

Definition at line 38 of file SyncStatusVector.vhd.

CNT_WIDTH_G

CNT_WIDTH_G positive := 32

Generic

Definition at line 39 of file SyncStatusVector.vhd.

WIDTH_G

WIDTH_G positive := 16

Generic

Definition at line 40 of file SyncStatusVector.vhd.

statusIn

statusIn in slv ( WIDTH_G - 1 downto 0 )

Port

Definition at line 45 of file SyncStatusVector.vhd.

statusOut

statusOut out slv ( WIDTH_G - 1 downto 0 )

Port

Definition at line 49 of file SyncStatusVector.vhd.

cntRstIn

cntRstIn in sl

Port

Definition at line 55 of file SyncStatusVector.vhd.

rollOverEnIn

rollOverEnIn in slv ( WIDTH_G - 1 downto 0 ) := ( others = > ' 0 ' )

Port

Definition at line 63 of file SyncStatusVector.vhd.

cntOut

cntOut out SlVectorArray ( WIDTH_G - 1 downto 0 , CNT_WIDTH_G - 1 downto 0 )

Port

Definition at line 74 of file SyncStatusVector.vhd.

irqEnIn

irqEnIn in slv ( WIDTH_G - 1 downto 0 ) := ( others = > ' 0 ' )

Port

Definition at line 85 of file SyncStatusVector.vhd.

irqOut

irqOut out sl

Port

Definition at line 88 of file SyncStatusVector.vhd.

wrClk

wrClk in sl

Port

Definition at line 92 of file SyncStatusVector.vhd.

wrRst

wrRst in sl := ' 0 '

Port

Definition at line 93 of file SyncStatusVector.vhd.

rdClk

rdClk in sl

Port

Definition at line 94 of file SyncStatusVector.vhd.

rdRst

rdRst in sl := ' 0 '

Port

Definition at line 95 of file SyncStatusVector.vhd.

ieee

ieee

Library

Definition at line 18 of file SyncStatusVector.vhd.

std_logic_1164

std_logic_1164

Package

Definition at line 19 of file SyncStatusVector.vhd.

std_logic_unsigned

std_logic_unsigned

Package

Definition at line 20 of file SyncStatusVector.vhd.

std_logic_arith

std_logic_arith

Package

Definition at line 21 of file SyncStatusVector.vhd.

StdRtlPkg

StdRtlPkg

Package

Definition at line 23 of file SyncStatusVector.vhd.

---

The documentation for this class was generated from the following file:

• base/sync/rtl/SyncStatusVector.vhd
