SaltRx Entity Reference
protocols » salt » core

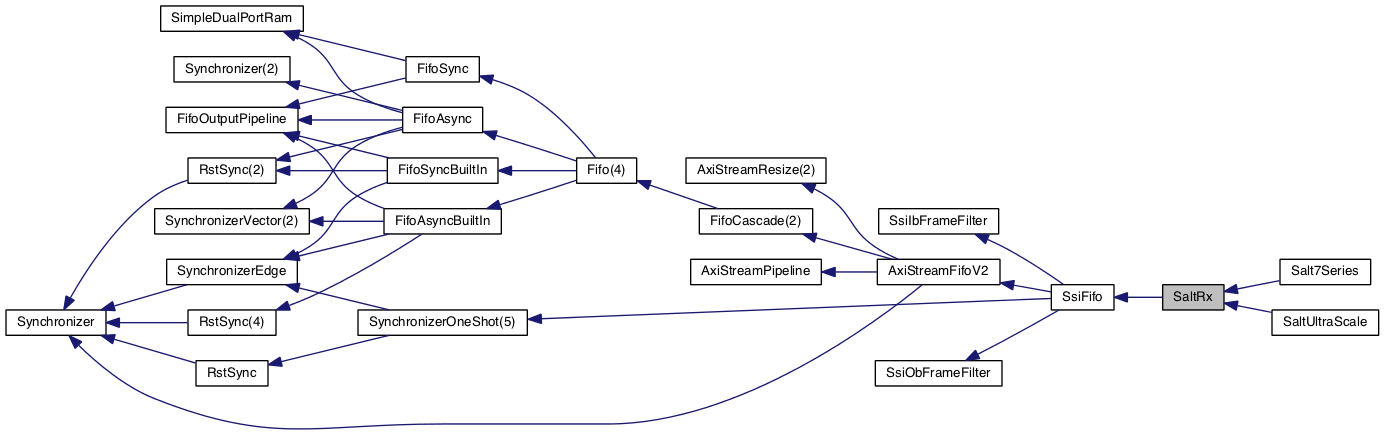

+ Inheritance diagram for SaltRx:

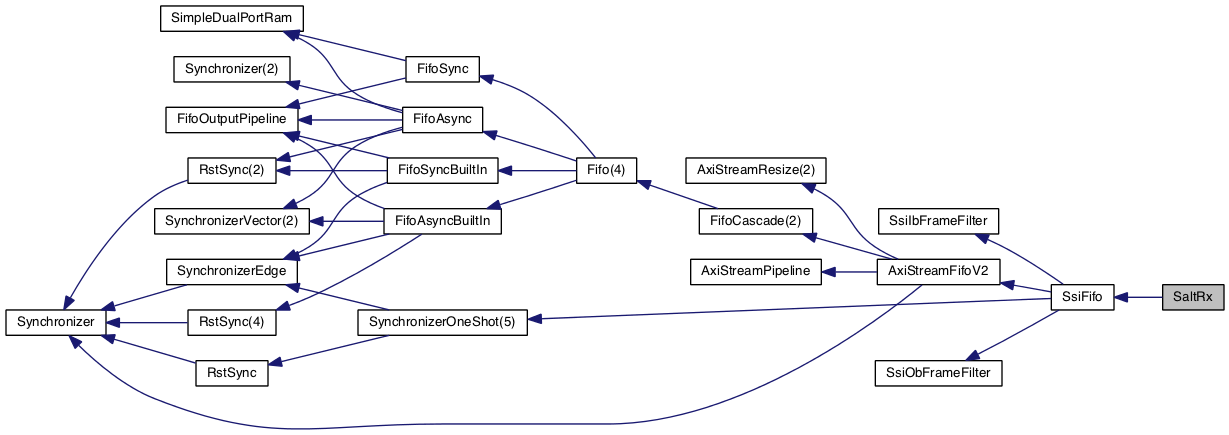

+ Collaboration diagram for SaltRx:

Entities

rtl  architecture


Libraries

ieee

Use Clauses

std_logic_1164
std_logic_unsigned
std_logic_arith
StdRtlPkg  Package <StdRtlPkg>
AxiStreamPkg  Package <AxiStreamPkg>
SsiPkg  Package <SsiPkg>
SaltPkg  Package <SaltPkg>

Generics

TPD_G  time := 1 ns
COMMON_RX_CLK_G  boolean := false
MASTER_AXI_CONFIG_G  AxiStreamConfigType := ssiAxiStreamConfig ( 4 )

Ports

mAxisClk   in sl
mAxisRst   in sl
mAxisMaster   out AxiStreamMasterType
mAxisSlave   in AxiStreamSlaveType
rxEn   in sl
rxErr   in sl
rxData   in slv ( 7 downto 0 )
clk   in sl
rst   in sl

Detailed Description

See also
entity

Definition at line 30 of file SaltRx.vhd.

Member Data Documentation

◆ TPD_G

TPD_G time := 1 ns
Generic

Definition at line 32 of file SaltRx.vhd.

◆ COMMON_RX_CLK_G

COMMON_RX_CLK_G boolean := false
Generic

Definition at line 33 of file SaltRx.vhd.

◆ MASTER_AXI_CONFIG_G

MASTER_AXI_CONFIG_G AxiStreamConfigType := ssiAxiStreamConfig ( 4 )
Generic

Definition at line 34 of file SaltRx.vhd.

◆ mAxisClk

mAxisClk in sl
Port

Definition at line 37 of file SaltRx.vhd.

◆ mAxisRst

mAxisRst in sl
Port

Definition at line 38 of file SaltRx.vhd.

◆ mAxisMaster

mAxisMaster out AxiStreamMasterType
Port

Definition at line 39 of file SaltRx.vhd.

◆ mAxisSlave

mAxisSlave in AxiStreamSlaveType
Port

Definition at line 40 of file SaltRx.vhd.

◆ rxEn

rxEn in sl
Port

Definition at line 42 of file SaltRx.vhd.

◆ rxErr

rxErr in sl
Port

Definition at line 43 of file SaltRx.vhd.

◆ rxData

rxData in slv ( 7 downto 0 )
Port

Definition at line 44 of file SaltRx.vhd.

◆ clk

clk in sl
Port

Definition at line 45 of file SaltRx.vhd.

◆ rst

rst in sl
Port

Definition at line 46 of file SaltRx.vhd.

◆ ieee

ieee
Library

Definition at line 18 of file SaltRx.vhd.

◆ std_logic_1164

std_logic_1164
Package

Definition at line 19 of file SaltRx.vhd.

◆ std_logic_unsigned

std_logic_unsigned
Package

Definition at line 20 of file SaltRx.vhd.

◆ std_logic_arith

std_logic_arith
Package

Definition at line 21 of file SaltRx.vhd.

◆ StdRtlPkg

StdRtlPkg
Package

Definition at line 23 of file SaltRx.vhd.

◆ AxiStreamPkg

AxiStreamPkg
Package

Definition at line 24 of file SaltRx.vhd.

◆ SsiPkg

SsiPkg
Package

Definition at line 25 of file SaltRx.vhd.

◆ SaltPkg

SaltPkg
Package

Definition at line 26 of file SaltRx.vhd.
