Jesd204bRxGthUltra Entity Reference

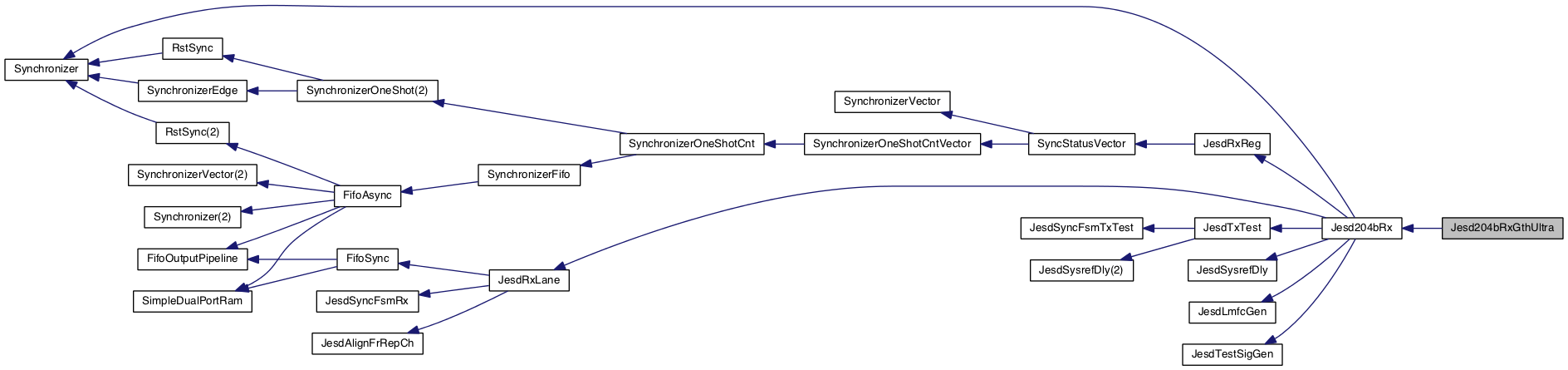

+ Inheritance diagram for Jesd204bRxGthUltra:
+ Collaboration diagram for Jesd204bRxGthUltra:

Entities

rtl  architecture


Libraries

ieee
unisim

Use Clauses

vcomponents
std_logic_1164
std_logic_arith
std_logic_unsigned
numeric_std
StdRtlPkg  Package <StdRtlPkg>
AxiLitePkg  Package <AxiLitePkg>
AxiStreamPkg  Package <AxiStreamPkg>
SsiPkg  Package <SsiPkg>
Jesd204bPkg  Package <Jesd204bPkg>

Generics

TPD_G  time := 1 ns
TEST_G  boolean := false
SYSREF_GEN_G  boolean := false
AXI_ERROR_RESP_G  slv ( 1 downto 0 ) := AXI_RESP_SLVERR_C
F_G  positive := 2
K_G  positive := 32
L_G  positive := 2

Ports

stableClk   in sl
refClk   in sl
gtTxP   out slv ( L_G - 1 downto 0 )
gtTxN   out slv ( L_G - 1 downto 0 )
gtRxP   in slv ( L_G - 1 downto 0 )
gtRxN   in slv ( L_G - 1 downto 0 )
devClk_i   in sl
devClk2_i   in sl
devRst_i   in sl
axiClk   in sl
axiRst   in sl
axilReadMaster   in AxiLiteReadMasterType
axilReadSlave   out AxiLiteReadSlaveType
axilWriteMaster   in AxiLiteWriteMasterType
axilWriteSlave   out AxiLiteWriteSlaveType
rxAxisMasterArr   out AxiStreamMasterArray ( L_G - 1 downto 0 )
rxCtrlArr   in AxiStreamCtrlArray ( L_G - 1 downto 0 )
sysRef_i   in sl
sysRef_o   out sl
nSync_o   out sl
leds_o   out slv ( 1 downto 0 )
pulse_o   out slv ( L_G - 1 downto 0 )
qPllLock_o   out sl

Detailed Description

Definition at line 39 of file Jesd204bRxGthUltra.vhd.

Member Data Documentation

◆ TPD_G

TPD_G time := 1 ns
Generic

Definition at line 41 of file Jesd204bRxGthUltra.vhd.

◆ TEST_G

TEST_G boolean := false
Generic

Definition at line 44 of file Jesd204bRxGthUltra.vhd.

◆ SYSREF_GEN_G

SYSREF_GEN_G boolean := false
Generic

Definition at line 48 of file Jesd204bRxGthUltra.vhd.

◆ AXI_ERROR_RESP_G

AXI_ERROR_RESP_G slv ( 1 downto 0 ) := AXI_RESP_SLVERR_C
Generic

Definition at line 52 of file Jesd204bRxGthUltra.vhd.

◆ F_G

F_G positive := 2
Generic

Definition at line 56 of file Jesd204bRxGthUltra.vhd.

◆ K_G

K_G positive := 32
Generic

Definition at line 57 of file Jesd204bRxGthUltra.vhd.

◆ L_G

L_G positive := 2
Generic

Definition at line 59 of file Jesd204bRxGthUltra.vhd.

◆ stableClk

stableClk in sl
Port

Definition at line 65 of file Jesd204bRxGthUltra.vhd.

◆ refClk

refClk in sl
Port

Definition at line 66 of file Jesd204bRxGthUltra.vhd.

◆ gtTxP

gtTxP out slv ( L_G - 1 downto 0 )
Port

Definition at line 68 of file Jesd204bRxGthUltra.vhd.

◆ gtTxN

gtTxN out slv ( L_G - 1 downto 0 )
Port

Definition at line 69 of file Jesd204bRxGthUltra.vhd.

◆ gtRxP

gtRxP in slv ( L_G - 1 downto 0 )
Port

Definition at line 70 of file Jesd204bRxGthUltra.vhd.

◆ gtRxN

gtRxN in slv ( L_G - 1 downto 0 )
Port

Definition at line 71 of file Jesd204bRxGthUltra.vhd.

◆ devClk_i

devClk_i in sl
Port

Definition at line 75 of file Jesd204bRxGthUltra.vhd.

◆ devClk2_i

devClk2_i in sl
Port

Definition at line 76 of file Jesd204bRxGthUltra.vhd.

◆ devRst_i

devRst_i in sl
Port

Definition at line 77 of file Jesd204bRxGthUltra.vhd.

◆ axiClk

axiClk in sl
Port

Definition at line 81 of file Jesd204bRxGthUltra.vhd.

◆ axiRst

axiRst in sl
Port

Definition at line 82 of file Jesd204bRxGthUltra.vhd.

◆ axilReadMaster

axilReadMaster in AxiLiteReadMasterType
Port

Definition at line 85 of file Jesd204bRxGthUltra.vhd.

◆ axilReadSlave

axilReadSlave out AxiLiteReadSlaveType
Port

Definition at line 86 of file Jesd204bRxGthUltra.vhd.

◆ axilWriteMaster

axilWriteMaster in AxiLiteWriteMasterType
Port

Definition at line 87 of file Jesd204bRxGthUltra.vhd.

◆ axilWriteSlave

axilWriteSlave out AxiLiteWriteSlaveType
Port

Definition at line 88 of file Jesd204bRxGthUltra.vhd.

◆ rxAxisMasterArr

rxAxisMasterArr out AxiStreamMasterArray ( L_G - 1 downto 0 )
Port

Definition at line 91 of file Jesd204bRxGthUltra.vhd.

◆ rxCtrlArr

rxCtrlArr in AxiStreamCtrlArray ( L_G - 1 downto 0 )
Port

Definition at line 92 of file Jesd204bRxGthUltra.vhd.

◆ sysRef_i

sysRef_i in sl
Port

Definition at line 98 of file Jesd204bRxGthUltra.vhd.

◆ sysRef_o

sysRef_o out sl
Port

Definition at line 101 of file Jesd204bRxGthUltra.vhd.

◆ nSync_o

nSync_o out sl
Port

Definition at line 104 of file Jesd204bRxGthUltra.vhd.

◆ leds_o

leds_o out slv ( 1 downto 0 )
Port

Definition at line 107 of file Jesd204bRxGthUltra.vhd.

◆ pulse_o

pulse_o out slv ( L_G - 1 downto 0 )
Port

Definition at line 110 of file Jesd204bRxGthUltra.vhd.

◆ qPllLock_o

qPllLock_o out sl
Port

Definition at line 114 of file Jesd204bRxGthUltra.vhd.

◆ ieee

ieee
Library

Definition at line 24 of file Jesd204bRxGthUltra.vhd.

◆ unisim

unisim
Library

Definition at line 25 of file Jesd204bRxGthUltra.vhd.

◆ vcomponents

vcomponents
Package

Definition at line 26 of file Jesd204bRxGthUltra.vhd.

◆ std_logic_1164

std_logic_1164
Package

Definition at line 28 of file Jesd204bRxGthUltra.vhd.

◆ std_logic_arith

std_logic_arith
Package

Definition at line 29 of file Jesd204bRxGthUltra.vhd.

◆ std_logic_unsigned

std_logic_unsigned
Package

Definition at line 30 of file Jesd204bRxGthUltra.vhd.

◆ numeric_std

numeric_std
Package

Definition at line 31 of file Jesd204bRxGthUltra.vhd.

◆ StdRtlPkg

StdRtlPkg
Package

Definition at line 33 of file Jesd204bRxGthUltra.vhd.

◆ AxiLitePkg

AxiLitePkg
Package

Definition at line 34 of file Jesd204bRxGthUltra.vhd.

◆ AxiStreamPkg

AxiStreamPkg
Package

Definition at line 35 of file Jesd204bRxGthUltra.vhd.

◆ SsiPkg

SsiPkg
Package

Definition at line 36 of file Jesd204bRxGthUltra.vhd.

◆ Jesd204bPkg

Jesd204bPkg
Package

Definition at line 37 of file Jesd204bRxGthUltra.vhd.
