EventSource Class Reference

The virtual base class for a physics event source such as a StdHep file. More...

#include <EventSource.hh>

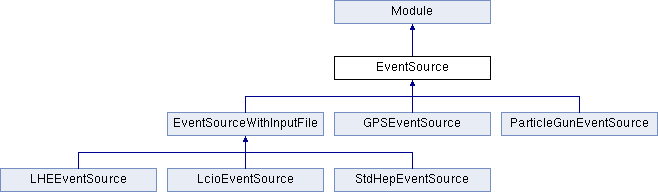

Inheritance diagram for EventSource:

Public Member Functions
virtual	~EventSource ()
virtual void	beginEvent (const G4Event *event)
virtual void	beginRun (const G4Run *run)
virtual void	endEvent (const G4Event *event)
virtual void	endRun (const G4Run *run)
virtual void	generate (G4Event *event)=0
virtual void	printCurrentEvent ()=0
virtual void	reset ()
virtual unsigned int	skipEvents (unsigned int n)
Public Member Functions inherited from Module
virtual	~Module ()
virtual void	cleanup ()
bool	deleteOnExit ()
const std::string &	getName () const
ModuleStatus	getStatus () const
virtual void	initialize ()
LogStream &	log ()
virtual void	postTracking (const G4Track *)
virtual void	preTracking (const G4Track *)
virtual void	stepping (const G4Step *)

Protected Member Functions
	EventSource (const std::string &name)
Protected Member Functions inherited from Module
	Module (const std::string &name, bool deleteOnExit=true, bool autoRegister=true)

Private Attributes
std::string	m_name
int	nEventsGenerated

Additional Inherited Members
Public Types inherited from Module
enum	ModuleStatus { eOkay = 0 , eNotInitialized = 1 , eBadState = 2 , eFatalError = 3 }
Public Attributes inherited from Module
bool	m_deleteOnExit
LogStream *	m_log
std::string	m_name
ModuleStatus	m_status

Detailed Description

The virtual base class for a physics event source such as a StdHep file.

Definition at line 19 of file EventSource.hh.

Constructor & Destructor Documentation

EventSource()

EventSource ( const std::string &  name )

protected

Class constructor.

Definition at line 12 of file EventSource.cc.

~EventSource()

~EventSource ( )

virtual

Class destructor.

Definition at line 9 of file EventSource.cc.

Member Function Documentation

beginEvent()

void beginEvent ( const G4Event *  event )

virtual

Hook for beginning of an event.

Parameters

[in]

event

The Geant4 event.

Reimplemented from Module.

Reimplemented in EventSourceWithInputFile, StdHepEventSource, LHEEventSource, and LcioEventSource.

Definition at line 25 of file EventSource.cc.

Referenced by EventSourceManager::beginEvent().

beginRun()

void beginRun ( const G4Run *  run )

virtual

Hook for the beginning of a run.

Parameters

[in]

run

The Geant4 run.

Reimplemented from Module.

Reimplemented in EventSourceWithInputFile, StdHepEventSource, LHEEventSource, and LcioEventSource.

Definition at line 33 of file EventSource.cc.

Referenced by EventSourceManager::beginRun().

endEvent()

void endEvent ( const G4Event *  event )

virtual

Hook for end of an event.

Parameters

[in]

event

The Geant4 event.

Reimplemented from Module.

Definition at line 29 of file EventSource.cc.

Referenced by EventSourceManager::endEvent().

endRun()

void endRun ( const G4Run *  run )

virtual

Hook for the end of a run.

Parameters

[in]

run

The Geant4 run.

Reimplemented from Module.

Definition at line 37 of file EventSource.cc.

Referenced by EventSourceManager::endRun().

generate()

virtual void generate ( G4Event *  event )

pure virtual

Generate an event.

Parameters

[in]

event

The Geant4 event to be modified.

Implemented in ParticleGunEventSource, GPSEventSource, StdHepEventSource, LHEEventSource, and LcioEventSource.

Referenced by EventSourceManager::generate().

printCurrentEvent()

virtual void printCurrentEvent ( )

pure virtual

Dump information about the current event.

Implemented in EventSourceWithInputFile, StdHepEventSource, ParticleGunEventSource, LHEEventSource, LcioEventSource, and GPSEventSource.

Referenced by EventSourceManager::dumpCurrentEvent(), and EventSourceManager::endEvent().

reset()

void reset ( )

virtual

Reset the event source.

Reimplemented from Module.

Reimplemented in EventSourceWithInputFile.

Definition at line 16 of file EventSource.cc.

Referenced by EventSourceManager::resetCurrentEventSource().

skipEvents()

unsigned int skipEvents ( unsigned int  n )

virtual

Skip a number of events in the source.

Parameters

[in]

n

The number of events to skip.

Reimplemented in EventSourceWithInputFile.

Definition at line 20 of file EventSource.cc.

Member Data Documentation

m_name

std::string m_name

private

Definition at line 85 of file EventSource.hh.

nEventsGenerated

int nEventsGenerated

private

Definition at line 86 of file EventSource.hh.

---

The documentation for this class was generated from the following files:

• EventSource.hh
• EventSource.cc
