Reads Rogue stream data files and emits frames on stream master interface. More...

#include <StreamReader.h>

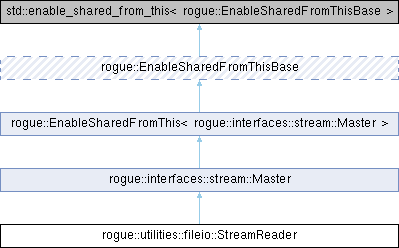

Inheritance diagram for rogue::utilities::fileio::StreamReader:

Public Member Functions
	StreamReader ()
	Constructs a stream reader instance.

	~StreamReader ()
	Destroys stream reader and closes active file/thread.

void	open (std::string file)
	Opens a file and starts background read processing.

void	close ()
	Stops read thread and closes active file immediately.

bool	isOpen ()
	Returns whether a file descriptor is currently open.

void	closeWait ()
	Waits for read activity to complete, then closes file/thread.

bool	isActive ()
	Returns read activity state.

Public Member Functions inherited from rogue::interfaces::stream::Master
	Master ()
	Constructs a stream master.

virtual	~Master ()
	Destroys the stream master.

uint32_t	slaveCount ()
	Returns the number of attached slaves.

void	addSlave (std::shared_ptr< rogue::interfaces::stream::Slave > slave)
	Attaches a downstream slave.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqFrame (uint32_t size, bool zeroCopyEn)
	Requests allocation of a new frame from the primary slave.

void	sendFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Sends a frame to all attached slaves.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures a frame is represented by a single buffer.

virtual void	stop ()
	Stops frame generation and shuts down associated threads.

void	equalsPy (boost::python::object p)
	Supports `==` operator usage from Python.

boost::python::object	rshiftPy (boost::python::object p)
	Supports `>>` operator usage from Python.

void	operator== (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Supports `==` operator usage in C++.

std::shared_ptr< rogue::interfaces::stream::Slave > &	operator>> (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Connects this master to a slave via stream chaining operator.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Master >
std::shared_ptr< rogue::interfaces::stream::Master >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThisBase
virtual	~EnableSharedFromThisBase ()
	Virtual destructor for polymorphic base usage.

Static Public Member Functions
static std::shared_ptr< rogue::utilities::fileio::StreamReader >	create ()
	Creates a stream reader instance.

static void	setup_python ()
	Registers Python bindings for this class.

Static Public Member Functions inherited from rogue::interfaces::stream::Master
static std::shared_ptr< rogue::interfaces::stream::Master >	create ()
	Creates a stream master.

static void	setup_python ()
	Registers this type with Python bindings.

Detailed Description

Reads Rogue stream data files and emits frames on stream master interface.

StreamReader opens a file (or indexed file sequence) created by Rogue file writer utilities, parses frame headers/metadata, reconstructs stream frames, and forwards them downstream via sendFrame().

File sequence behavior:

If opened on a filename ending in .1, the reader attempts .2, .3, ... automatically as each file completes.
Otherwise only the specified file is read.

Read activity runs in a background thread while isActive() is true.

Definition at line 51 of file StreamReader.h.

Constructor & Destructor Documentation

◆ StreamReader()

rogue::utilities::fileio::StreamReader::StreamReader ( )

Constructs a stream reader instance.

Creator.

This constructor is a low-level C++ allocation path. Prefer create() when shared ownership or Python exposure is required.

Definition at line 65 of file StreamReader.cpp.

◆ ~StreamReader()

rogue::utilities::fileio::StreamReader::~StreamReader ( )

Destroys stream reader and closes active file/thread.

Deconstructor.

Definition at line 72 of file StreamReader.cpp.

Member Function Documentation

◆ close()

void rogue::utilities::fileio::StreamReader::close ( )

Stops read thread and closes active file immediately.

Close a data file.

Definition at line 125 of file StreamReader.cpp.

◆ closeWait()

void rogue::utilities::fileio::StreamReader::closeWait ( )

Waits for read activity to complete, then closes file/thread.

Close when done.

Definition at line 148 of file StreamReader.cpp.

◆ create()

rogue::utilities::fileio::StreamReaderPtr rogue::utilities::fileio::StreamReader::create ( )

static

Creates a stream reader instance.

Class creation.

This static factory is the preferred construction path when the object is shared across Rogue graph connections or exposed to Python. It returns std::shared_ptr ownership compatible with Rogue pointer typedefs.

Returns: Shared pointer to the created reader.

Company : SLAC National Accelerator Laboratory

Description :

Class to read data files.

This file is part of the rogue software platform. It is subject to the license terms in the LICENSE.txt file found in the top-level directory of this distribution and at: https://confluence.slac.stanford.edu/display/ppareg/LICENSE.html. No part of the rogue software platform, including this file, may be copied, modified, propagated, or distributed except according to the terms

contained in the LICENSE.txt file.

Definition at line 46 of file StreamReader.cpp.

◆ isActive()

bool rogue::utilities::fileio::StreamReader::isActive ( )

Returns read activity state.

Return true when done.

Returns: true while background reader is active.

Definition at line 156 of file StreamReader.cpp.

◆ isOpen()

bool rogue::utilities::fileio::StreamReader::isOpen ( )

Returns whether a file descriptor is currently open.

Get open status.

Returns: true if file is open; otherwise false.

Definition at line 132 of file StreamReader.cpp.

◆ open()

void rogue::utilities::fileio::StreamReader::open ( std::string file )

Opens a file and starts background read processing.

Open a data file.

Parameters

file	Input data filename.

Definition at line 77 of file StreamReader.cpp.

◆ setup_python()

void rogue::utilities::fileio::StreamReader::setup_python ( )
