PRBS generator/checker that can act as both stream master and slave. More...

#include <Prbs.h>

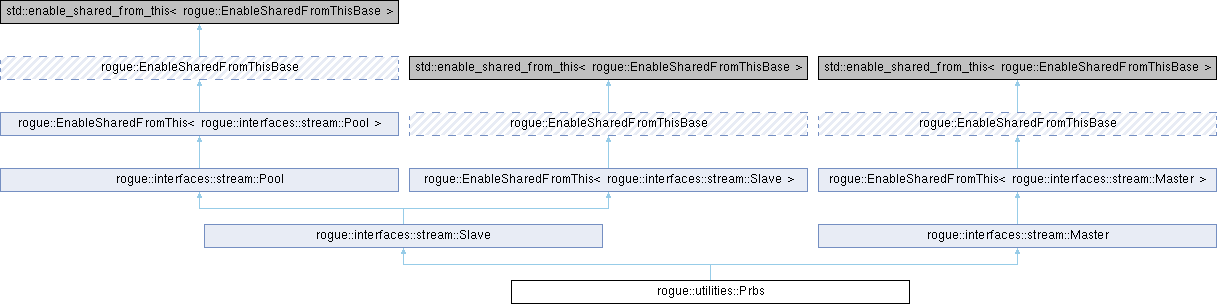

Inheritance diagram for rogue::utilities::Prbs:

Public Member Functions
	Prbs ()
	Constructs a PRBS instance with default taps and width.

	~Prbs ()
	Destroys the PRBS instance and stops background generation.

void	setWidth (uint32_t width)
	Sets generator/checker data width.

void	setTaps (uint32_t tapCnt, uint8_t *taps)
	Configures LFSR taps.

void	setTapsPy (boost::python::object p)
	Configures LFSR taps from a Python sequence.

void	sendCount (bool state)
	Enables or disables transmission of sequence counters in payload.

void	genFrame (uint32_t size)
	Generates and transmits one PRBS frame.

void	enable (uint32_t size)
	Enables periodic background frame generation.

void	disable ()
	Disables periodic background frame generation.

bool	getRxEnable ()
	Returns whether RX checking is enabled.

void	setRxEnable (bool state)
	Enables or disables RX checking.

uint32_t	getRxErrors ()
	Returns RX error count.

uint32_t	getRxCount ()
	Returns RX frame count.

uint64_t	getRxBytes ()
	Returns RX byte count.

double	getRxRate ()
	Returns computed RX frame rate.

double	getRxBw ()
	Returns computed RX bandwidth.

double	getTxRate ()
	Returns computed TX frame rate.

void	setTxPeriod (uint32_t txPeriod)
	Sets background TX period.

uint32_t	getTxPeriod ()
	Returns configured background TX period.

double	getTxBw ()
	Returns computed TX bandwidth.

uint32_t	getTxErrors ()
	Returns TX error count.

uint32_t	getTxCount ()
	Returns TX frame count.

uint64_t	getTxBytes ()
	Returns TX byte count.

void	checkPayload (bool state)
	Enables or disables payload checking.

void	genPayload (bool state)
	Enables or disables payload generation.

void	resetCount ()
	Resets RX/TX counters and statistics.

void	acceptFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Accepts a frame from an upstream master.

Public Member Functions inherited from rogue::interfaces::stream::Slave
	Slave ()
	Constructs a stream slave.

virtual	~Slave ()
	Destroys the stream slave.

virtual void	stop ()
	Shuts down threads associated with this object.

void	setDebug (uint32_t debug, std::string name)
	Sets debug message verbosity and logger name.

uint64_t	getFrameCount ()
	Returns frame counter.

uint64_t	getByteCount ()
	Returns byte counter.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures frame is backed by a single buffer.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqLocalFrame (uint32_t size, bool zeroCopyEn)
	Services a local frame allocation request through this object's pool interface.

boost::python::object	lshiftPy (boost::python::object p)
	Supports `<<` operator usage from Python.

std::shared_ptr< rogue::interfaces::stream::Master > &	operator<< (std::shared_ptr< rogue::interfaces::stream::Master > &other)
	Connects this slave to a master via stream chaining operator.

Public Member Functions inherited from rogue::interfaces::stream::Pool
	Pool ()
	Constructs a pool with default allocation behavior enabled.

virtual	~Pool ()
	Destroys the pool and releases any cached buffer storage.

uint32_t	getAllocBytes ()
	Returns total currently allocated bytes.

uint32_t	getAllocCount ()
	Returns total currently allocated buffer count.

virtual std::shared_ptr< rogue::interfaces::stream::Frame >	acceptReq (uint32_t size, bool zeroCopyEn)
	Services a frame allocation request from a master.

virtual void	retBuffer (uint8_t *data, uint32_t meta, uint32_t size)
	Returns buffer data to the allocator.

void	setFixedSize (uint32_t size)
	Sets fixed-size mode.

uint32_t	getFixedSize ()
	Returns fixed-size allocation setting.

void	setPoolSize (uint32_t size)
	Sets buffer pool size.

uint32_t	getPoolSize ()
	Returns configured maximum number of cached pool entries.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Pool >
std::shared_ptr< rogue::interfaces::stream::Pool >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThisBase
virtual	~EnableSharedFromThisBase ()
	Virtual destructor for polymorphic base usage.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Slave >
std::shared_ptr< rogue::interfaces::stream::Slave >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::interfaces::stream::Master
	Master ()
	Constructs a stream master.

virtual	~Master ()
	Destroys the stream master.

uint32_t	slaveCount ()
	Returns the number of attached slaves.

void	addSlave (std::shared_ptr< rogue::interfaces::stream::Slave > slave)
	Attaches a downstream slave.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqFrame (uint32_t size, bool zeroCopyEn)
	Requests allocation of a new frame from the primary slave.

void	sendFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Sends a frame to all attached slaves.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures a frame is represented by a single buffer.

virtual void	stop ()
	Stops frame generation and shuts down associated threads.

void	equalsPy (boost::python::object p)
	Supports `==` operator usage from Python.

boost::python::object	rshiftPy (boost::python::object p)
	Supports `>>` operator usage from Python.

void	operator== (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Supports `==` operator usage in C++.

std::shared_ptr< rogue::interfaces::stream::Slave > &	operator>> (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Connects this master to a slave via stream chaining operator.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Master >
std::shared_ptr< rogue::interfaces::stream::Master >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Static Public Member Functions
static std::shared_ptr< rogue::utilities::Prbs >	create ()
	Creates a PRBS generator/checker instance.

static void	setup_python ()
	Registers Python bindings for this class.

Static Public Member Functions inherited from rogue::interfaces::stream::Slave
static std::shared_ptr< rogue::interfaces::stream::Slave >	create ()
	Creates a new stream slave.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Pool
static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Master
static std::shared_ptr< rogue::interfaces::stream::Master >	create ()
	Creates a stream master.

static void	setup_python ()
	Registers this type with Python bindings.

Additional Inherited Members
Protected Member Functions inherited from rogue::interfaces::stream::Pool
std::shared_ptr< rogue::interfaces::stream::Buffer >	allocBuffer (uint32_t size, uint32_t *total)
	Allocate a buffer passed size.

std::shared_ptr< rogue::interfaces::stream::Buffer >	createBuffer (void *data, uint32_t meta, uint32_t size, uint32_t alloc)
	Creates a Buffer with a pre-allocated data block.

void	decCounter (uint32_t alloc)
	Decrements allocation counter.

Detailed Description

PRBS generator/checker that can act as both stream master and slave.

The engine can transmit deterministic pseudo-random patterns and verify received patterns for bit-error testing. It supports one-shot frame generation and optional background transmit mode.

Threading model:

Receive checking executes synchronously in the thread calling acceptFrame().
Optional periodic transmit mode (enable()) runs in an internal TX thread that repeatedly calls genFrame().
Counters, LFSR state, and configuration shared between RX/TX paths are protected by an internal mutex.

Definition at line 48 of file Prbs.h.

Constructor & Destructor Documentation

◆ Prbs()

rogue::utilities::Prbs::Prbs ( )

Constructs a PRBS instance with default taps and width.

Creator with default taps and size.

This constructor is a low-level C++ allocation path. Prefer create() when shared ownership or Python exposure is required.

Definition at line 55 of file Prbs.cpp.

◆ ~Prbs()

rogue::utilities::Prbs::~Prbs ( )

Destroys the PRBS instance and stops background generation.

Deconstructor.

Definition at line 102 of file Prbs.cpp.

Member Function Documentation

◆ acceptFrame()

void rogue::utilities::Prbs::acceptFrame ( std::shared_ptr< rogue::interfaces::stream::Frame > frame )

virtual

Accepts a frame from an upstream master.

Accept a frame from master.

Parameters

frame Received stream frame.

Reimplemented from rogue::interfaces::stream::Slave.

Definition at line 408 of file Prbs.cpp.

◆ checkPayload()

void rogue::utilities::Prbs::checkPayload ( bool state )

Enables or disables payload checking.

Set check payload flag, default = true.

Parameters

state True to validate payload contents.

Definition at line 310 of file Prbs.cpp.

◆ create()

rogue::utilities::PrbsPtr rogue::utilities::Prbs::create ( )

static

Creates a PRBS generator/checker instance.

Class creation.

This static factory is the preferred construction path when the object is shared across Rogue graph connections or exposed to Python. It returns std::shared_ptr ownership compatible with Rogue pointer typedefs.

Returns: Shared pointer to the created PRBS object.

Company : SLAC National Accelerator Laboratory

Description :

Class used to generate and receive PRBS test data.

This file is part of the rogue software platform. It is subject to the license terms in the LICENSE.txt file found in the top-level directory of this distribution and at: https://confluence.slac.stanford.edu/display/ppareg/LICENSE.html. No part of the rogue software platform, including this file, may be copied, modified, propagated, or distributed except according to the terms

contained in the LICENSE.txt file.

Definition at line 49 of file Prbs.cpp.

◆ disable()

void rogue::utilities::Prbs::disable ( )

Disables periodic background frame generation.

Disable auto generation.

Stops and joins the internal TX worker thread started by enable().

Definition at line 226 of file Prbs.cpp.

◆ enable()

void rogue::utilities::Prbs::enable ( uint32_t size )

Enables periodic background frame generation.

Auto run data generation.

Starts an internal TX worker thread if one is not already running. Generated frames use the configured TX period from setTxPeriod().

Parameters

size	Payload size in bytes for generated frames.

Definition at line 209 of file Prbs.cpp.

◆ genFrame()

void rogue::utilities::Prbs::genFrame ( uint32_t size )

Generates and transmits one PRBS frame.

Generate a data frame.

Parameters

size	Payload size in bytes.

Definition at line 333 of file Prbs.cpp.

◆ genPayload()

void rogue::utilities::Prbs::genPayload ( bool state )

Enables or disables payload generation.

Set generate payload flag, default = true.

Parameters

state True to generate PRBS payload bytes.

Definition at line 315 of file Prbs.cpp.

◆ getRxBw()

double rogue::utilities::Prbs::getRxBw ( )

Returns computed RX bandwidth.

Get rx bw.

Returns: Receive bandwidth in bytes/second.

Definition at line 280 of file Prbs.cpp.

◆ getRxBytes()

uint64_t rogue::utilities::Prbs::getRxBytes ( )

Returns RX byte count.

Get rx bytes.

Returns: Total received payload bytes.

Definition at line 260 of file Prbs.cpp.

◆ getRxCount()

uint32_t rogue::utilities::Prbs::getRxCount ( )

Returns RX frame count.

Get rx count.

Returns: Number of received frames.

Definition at line 255 of file Prbs.cpp.

◆ getRxEnable()

bool rogue::utilities::Prbs::getRxEnable ( )

Returns whether RX checking is enabled.

Get rx enable.

Returns: True when RX checking is enabled.

Definition at line 237 of file Prbs.cpp.

◆ getRxErrors()

uint32_t rogue::utilities::Prbs::getRxErrors ( )

Returns RX error count.

Get RX errors.

Returns: Number of receive-side check failures.

Definition at line 250 of file Prbs.cpp.

◆ getRxRate()

double rogue::utilities::Prbs::getRxRate ( )

Returns computed RX frame rate.

Get rx rate.

Returns: Receive frame rate in frames/second.

Definition at line 275 of file Prbs.cpp.

◆ getTxBw()

double rogue::utilities::Prbs::getTxBw ( )

Returns computed TX bandwidth.

Get tx bw.

Returns: Transmit bandwidth in bytes/second.

Definition at line 300 of file Prbs.cpp.

◆ getTxBytes()

uint64_t rogue::utilities::Prbs::getTxBytes ( )

Returns TX byte count.

Get TX bytes.

Returns: Total transmitted payload bytes.

Definition at line 305 of file Prbs.cpp.

◆ getTxCount()

uint32_t rogue::utilities::Prbs::getTxCount ( )

Returns TX frame count.

Get TX count.

Returns: Number of transmitted frames.

Definition at line 270 of file Prbs.cpp.

◆ getTxErrors()

uint32_t rogue::utilities::Prbs::getTxErrors ( )

Returns TX error count.

Get TX errors.

Returns: Number of transmit-side generation errors.

Definition at line 265 of file Prbs.cpp.

◆ getTxPeriod()

uint32_t rogue::utilities::Prbs::getTxPeriod ( )

Returns configured background TX period.

Get tx rate limit.

Returns: TX period in microseconds.

Definition at line 290 of file Prbs.cpp.

◆ getTxRate()

double rogue::utilities::Prbs::getTxRate ( )

Returns computed TX frame rate.

Get tx rate.

Returns: Transmit frame rate in frames/second.

Definition at line 285 of file Prbs.cpp.

◆ resetCount()

void rogue::utilities::Prbs::resetCount ( )

Resets RX/TX counters and statistics.

Reset counters.

Definition at line 321 of file Prbs.cpp.

◆ sendCount()

void rogue::utilities::Prbs::sendCount ( bool state )

Enables or disables transmission of sequence counters in payload.

Send counter value.

Parameters

state True to include counters in generated data.

Definition at line 170 of file Prbs.cpp.

◆ setRxEnable()

void rogue::utilities::Prbs::setRxEnable ( bool state )

Enables or disables RX checking.

Set rx enable.

Parameters

state True to validate incoming PRBS frames.

Definition at line 242 of file Prbs.cpp.

◆ setTaps()

void rogue::utilities::Prbs::setTaps	(	uint32_t	tapCnt,
		uint8_t *	taps
	)

Configures LFSR taps.

Set taps.

Parameters

tapCnt	Number of tap entries in `taps`.
taps	Pointer to tap index array.

Definition at line 142 of file Prbs.cpp.

◆ setTapsPy()

void rogue::utilities::Prbs::setTapsPy ( boost::python::object p )

Configures LFSR taps from a Python sequence.

Set taps, python.

Parameters

p	Python object containing tap values.

Definition at line 157 of file Prbs.cpp.

◆ setTxPeriod()

void rogue::utilities::Prbs::setTxPeriod ( uint32_t txPeriod )

Sets background TX period.

Set tx rate limit.

Parameters

txPeriod Period in microseconds between generated frames.

Definition at line 295 of file Prbs.cpp.

◆ setup_python()

void rogue::utilities::Prbs::setup_python ( )

static

Registers Python bindings for this class.

Definition at line 521 of file Prbs.cpp.

◆ setWidth()

void rogue::utilities::Prbs::setWidth ( uint32_t width )

Sets generator/checker data width.

Set width.

Parameters

width Data width in bits.

Definition at line 130 of file Prbs.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/rogue/rogue/include/rogue/utilities/Prbs.h
/home/runner/work/rogue/rogue/src/rogue/utilities/Prbs.cpp

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Prbs()

◆ ~Prbs()

Member Function Documentation

◆ acceptFrame()

◆ checkPayload()

◆ create()

Company : SLAC National Accelerator Laboratory

Class used to generate and receive PRBS test data.

contained in the LICENSE.txt file.

◆ disable()

◆ enable()

◆ genFrame()

◆ genPayload()

◆ getRxBw()

◆ getRxBytes()

◆ getRxCount()

◆ getRxEnable()

◆ getRxErrors()

◆ getRxRate()

◆ getTxBw()

◆ getTxBytes()

◆ getTxCount()

◆ getTxErrors()

◆ getTxPeriod()

◆ getTxRate()

◆ resetCount()

◆ sendCount()

◆ setRxEnable()

◆ setTaps()

◆ setTapsPy()

◆ setTxPeriod()

◆ setup_python()

◆ setWidth()
