UDP stream endpoint that listens on a local UDP port. More...

#include <Server.h>

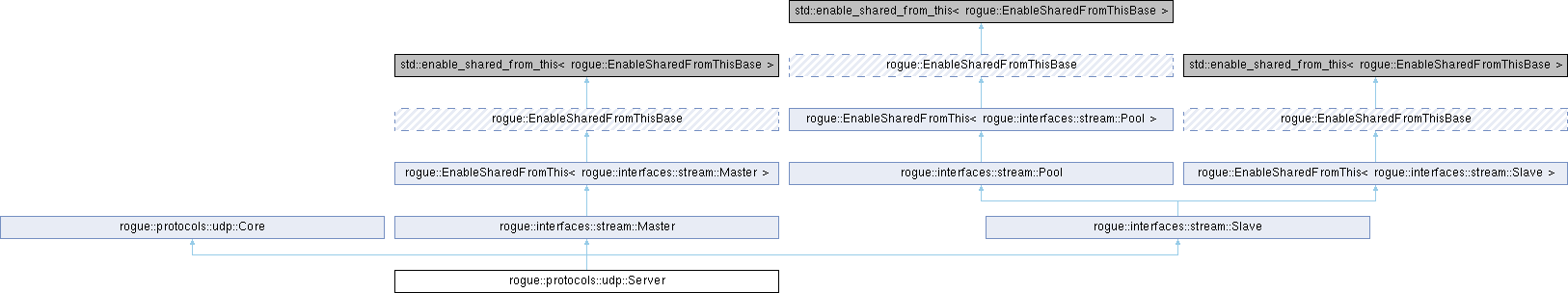

Inheritance diagram for rogue::protocols::udp::Server:

Public Member Functions
	Server (uint16_t port, bool jumbo)
	Constructs a UDP server endpoint.

	~Server ()
	Destroys the UDP server endpoint.

void	stop ()
	Stops the UDP server endpoint.

uint32_t	getPort ()
	Returns bound local UDP port number.

void	acceptFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Accepts an outbound stream frame and transmits it as UDP datagrams.

Public Member Functions inherited from rogue::protocols::udp::Core
	Core (bool jumbo)
	Constructs shared UDP core state.

	~Core ()
	Destroys the UDP core instance.

void	stop ()
	Stops the UDP interface.

uint32_t	maxPayload ()
	Returns maximum UDP payload size in bytes.

bool	setRxBufferCount (uint32_t count)
	Requests kernel UDP receive-buffer sizing by packet count.

void	setTimeout (uint32_t timeout)
	Sets outbound transmit wait timeout.

Public Member Functions inherited from rogue::interfaces::stream::Master
	Master ()
	Constructs a stream master.

virtual	~Master ()
	Destroys the stream master.

uint32_t	slaveCount ()
	Returns the number of attached slaves.

void	addSlave (std::shared_ptr< rogue::interfaces::stream::Slave > slave)
	Attaches a downstream slave.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqFrame (uint32_t size, bool zeroCopyEn)
	Requests allocation of a new frame from the primary slave.

void	sendFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Sends a frame to all attached slaves.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures a frame is represented by a single buffer.

void	equalsPy (boost::python::object p)
	Supports `==` operator usage from Python.

boost::python::object	rshiftPy (boost::python::object p)
	Supports `>>` operator usage from Python.

void	operator== (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Supports `==` operator usage in C++.

std::shared_ptr< rogue::interfaces::stream::Slave > &	operator>> (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Connects this master to a slave via stream chaining operator.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Master >
std::shared_ptr< rogue::interfaces::stream::Master >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThisBase
virtual	~EnableSharedFromThisBase ()
	Virtual destructor for polymorphic base usage.

Public Member Functions inherited from rogue::interfaces::stream::Slave
	Slave ()
	Constructs a stream slave.

virtual	~Slave ()
	Destroys the stream slave.

void	setDebug (uint32_t debug, std::string name)
	Sets debug message verbosity and logger name.

uint64_t	getFrameCount ()
	Returns frame counter.

uint64_t	getByteCount ()
	Returns byte counter.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures frame is backed by a single buffer.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqLocalFrame (uint32_t size, bool zeroCopyEn)
	Services a local frame allocation request through this object's pool interface.

boost::python::object	lshiftPy (boost::python::object p)
	Supports `<<` operator usage from Python.

std::shared_ptr< rogue::interfaces::stream::Master > &	operator<< (std::shared_ptr< rogue::interfaces::stream::Master > &other)
	Connects this slave to a master via stream chaining operator.

Public Member Functions inherited from rogue::interfaces::stream::Pool
	Pool ()
	Constructs a pool with default allocation behavior enabled.

virtual	~Pool ()
	Destroys the pool and releases any cached buffer storage.

uint32_t	getAllocBytes ()
	Returns total currently allocated bytes.

uint32_t	getAllocCount ()
	Returns total currently allocated buffer count.

virtual std::shared_ptr< rogue::interfaces::stream::Frame >	acceptReq (uint32_t size, bool zeroCopyEn)
	Services a frame allocation request from a master.

virtual void	retBuffer (uint8_t *data, uint32_t meta, uint32_t size)
	Returns buffer data to the allocator.

void	setFixedSize (uint32_t size)
	Sets fixed-size mode.

uint32_t	getFixedSize ()
	Returns fixed-size allocation setting.

void	setPoolSize (uint32_t size)
	Sets buffer pool size.

uint32_t	getPoolSize ()
	Returns configured maximum number of cached pool entries.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Pool >
std::shared_ptr< rogue::interfaces::stream::Pool >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Slave >
std::shared_ptr< rogue::interfaces::stream::Slave >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Static Public Member Functions
static std::shared_ptr< rogue::protocols::udp::Server >	create (uint16_t port, bool jumbo)
	Creates a UDP server endpoint.

static void	setup_python ()
	Registers Python bindings for this class.

Static Public Member Functions inherited from rogue::protocols::udp::Core
static void	setup_python ()
	Registers Python bindings for this class.

Static Public Member Functions inherited from rogue::interfaces::stream::Master
static std::shared_ptr< rogue::interfaces::stream::Master >	create ()
	Creates a stream master.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Slave
static std::shared_ptr< rogue::interfaces::stream::Slave >	create ()
	Creates a new stream slave.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Pool
static void	setup_python ()
	Registers this type with Python bindings.

Additional Inherited Members
Protected Member Functions inherited from rogue::interfaces::stream::Pool
std::shared_ptr< rogue::interfaces::stream::Buffer >	allocBuffer (uint32_t size, uint32_t *total)
	Allocate a buffer passed size.

std::shared_ptr< rogue::interfaces::stream::Buffer >	createBuffer (void *data, uint32_t meta, uint32_t size, uint32_t alloc)
	Creates a Buffer with a pre-allocated data block.

void	decCounter (uint32_t alloc)
	Decrements allocation counter.

Protected Attributes inherited from rogue::protocols::udp::Core
std::shared_ptr< rogue::Logging >	udpLog_

bool	jumbo_

int32_t	fd_

struct sockaddr_in	remAddr_

struct timeval	timeout_

std::thread *	thread_

bool	threadEn_

std::mutex	udpMtx_

Detailed Description

UDP stream endpoint that listens on a local UDP port.

Server combines UDP transport (udp::Core) with Rogue stream interfaces:

stream::Slave: accepts outbound frames and transmits datagrams to the most recently seen remote endpoint.
stream::Master: emits inbound datagrams as Rogue frames.

A background receive thread listens on the bound UDP socket, forwards payloads as frames, and updates remote endpoint address when packets are received.

Definition at line 51 of file Server.h.

Constructor & Destructor Documentation

◆ Server()

rogue::protocols::udp::Server::Server	(	uint16_t	port,
		bool	jumbo
	)

Constructs a UDP server endpoint.

Creator.

This constructor is a low-level C++ allocation path. Prefer create() when shared ownership or Python exposure is required.

Creates and binds UDP socket, initializes frame pool sizing, and starts background receive thread. If port == 0, the OS-assigned port is queried and stored.

Parameters

port	Local UDP port to bind (0 requests dynamic port assignment).
jumbo	`true` for jumbo payload sizing; `false` for standard MTU.

Definition at line 52 of file Server.cpp.

◆ ~Server()

rogue::protocols::udp::Server::~Server ( )

Destroys the UDP server endpoint.

Destructor.

Definition at line 103 of file Server.cpp.

Member Function Documentation

◆ acceptFrame()

void rogue::protocols::udp::Server::acceptFrame ( std::shared_ptr< rogue::interfaces::stream::Frame > frame )

virtual

Accepts an outbound stream frame and transmits it as UDP datagrams.

Accept a frame from master.

Datagrams are sent to the current remote endpoint address learned by the receive thread. Writes use select() with configured timeout.

Parameters

frame Outbound frame to transmit.

Reimplemented from rogue::interfaces::stream::Slave.

Definition at line 122 of file Server.cpp.

◆ create()

rogue::protocols::udp::ServerPtr rogue::protocols::udp::Server::create	(	uint16_t	port,
		bool	jumbo
	)

static

Creates a UDP server endpoint.

Class creation.

Parameter semantics are identical to the constructor; see Server() for endpoint setup behavior details. This static factory is the preferred construction path when the object is shared across Rogue graph connections or exposed to Python. It returns std::shared_ptr ownership compatible with Rogue pointer typedefs.

Parameters

port	Local UDP port to bind (0 requests dynamic port assignment).
jumbo	`true` for jumbo payload sizing; `false` for standard MTU.

Returns: Shared pointer to the created server.

Company : SLAC National Accelerator Laboratory

Description:

UDP Server

This file is part of the rogue software platform. It is subject to the license terms in the LICENSE.txt file found in the top-level directory of this distribution and at: https://confluence.slac.stanford.edu/display/ppareg/LICENSE.html. No part of the rogue software platform, including this file, may be copied, modified, propagated, or distributed except according to the terms

contained in the LICENSE.txt file.

Definition at line 46 of file Server.cpp.

◆ getPort()

uint32_t rogue::protocols::udp::Server::getPort ( )

Returns bound local UDP port number.

Get port number.

Returns: Local UDP port.

Definition at line 117 of file Server.cpp.

◆ setup_python()

void rogue::protocols::udp::Server::setup_python ( )

static

Registers Python bindings for this class.

Definition at line 239 of file Server.cpp.

◆ stop()

void rogue::protocols::udp::Server::stop ( )

virtual

Stops the UDP server endpoint.

Stops receive thread, joins thread, and closes socket.

Reimplemented from rogue::interfaces::stream::Master.

Definition at line 107 of file Server.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/rogue/rogue/include/rogue/protocols/udp/Server.h
/home/runner/work/rogue/rogue/src/rogue/protocols/udp/Server.cpp
