UDP stream endpoint that sends to and receives from a remote host. More...

#include <Client.h>

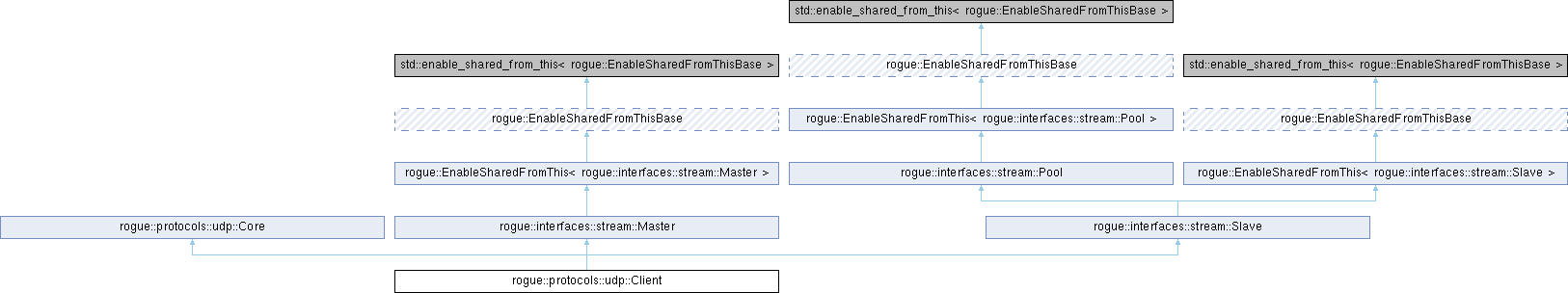

Inheritance diagram for rogue::protocols::udp::Client:

Public Member Functions
	Client (std::string host, uint16_t port, bool jumbo)
	Constructs a UDP client endpoint.

	~Client ()
	Destroys the UDP client endpoint.

void	stop ()
	Stops the UDP client endpoint.

void	acceptFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Accepts an outbound stream frame and transmits it as UDP datagrams.

Public Member Functions inherited from rogue::protocols::udp::Core
	Core (bool jumbo)
	Constructs shared UDP core state.

	~Core ()
	Destroys the UDP core instance.

void	stop ()
	Stops the UDP interface.

uint32_t	maxPayload ()
	Returns maximum UDP payload size in bytes.

bool	setRxBufferCount (uint32_t count)
	Requests kernel UDP receive-buffer sizing by packet count.

void	setTimeout (uint32_t timeout)
	Sets outbound transmit wait timeout.

Public Member Functions inherited from rogue::interfaces::stream::Master
	Master ()
	Constructs a stream master.

virtual	~Master ()
	Destroys the stream master.

uint32_t	slaveCount ()
	Returns the number of attached slaves.

void	addSlave (std::shared_ptr< rogue::interfaces::stream::Slave > slave)
	Attaches a downstream slave.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqFrame (uint32_t size, bool zeroCopyEn)
	Requests allocation of a new frame from the primary slave.

void	sendFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Sends a frame to all attached slaves.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures a frame is represented by a single buffer.

void	equalsPy (boost::python::object p)
	Supports `==` operator usage from Python.

boost::python::object	rshiftPy (boost::python::object p)
	Supports `>>` operator usage from Python.

void	operator== (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Supports `==` operator usage in C++.

std::shared_ptr< rogue::interfaces::stream::Slave > &	operator>> (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Connects this master to a slave via stream chaining operator.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Master >
std::shared_ptr< rogue::interfaces::stream::Master >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThisBase
virtual	~EnableSharedFromThisBase ()
	Virtual destructor for polymorphic base usage.

Public Member Functions inherited from rogue::interfaces::stream::Slave
	Slave ()
	Constructs a stream slave.

virtual	~Slave ()
	Destroys the stream slave.

void	setDebug (uint32_t debug, std::string name)
	Sets debug message verbosity and logger name.

uint64_t	getFrameCount ()
	Returns frame counter.

uint64_t	getByteCount ()
	Returns byte counter.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures frame is backed by a single buffer.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqLocalFrame (uint32_t size, bool zeroCopyEn)
	Services a local frame allocation request through this object's pool interface.

boost::python::object	lshiftPy (boost::python::object p)
	Supports `<<` operator usage from Python.

std::shared_ptr< rogue::interfaces::stream::Master > &	operator<< (std::shared_ptr< rogue::interfaces::stream::Master > &other)
	Connects this slave to a master via stream chaining operator.

Public Member Functions inherited from rogue::interfaces::stream::Pool
	Pool ()
	Constructs a pool with default allocation behavior enabled.

virtual	~Pool ()
	Destroys the pool and releases any cached buffer storage.

uint32_t	getAllocBytes ()
	Returns total currently allocated bytes.

uint32_t	getAllocCount ()
	Returns total currently allocated buffer count.

virtual std::shared_ptr< rogue::interfaces::stream::Frame >	acceptReq (uint32_t size, bool zeroCopyEn)
	Services a frame allocation request from a master.

virtual void	retBuffer (uint8_t *data, uint32_t meta, uint32_t size)
	Returns buffer data to the allocator.

void	setFixedSize (uint32_t size)
	Sets fixed-size mode.

uint32_t	getFixedSize ()
	Returns fixed-size allocation setting.

void	setPoolSize (uint32_t size)
	Sets buffer pool size.

uint32_t	getPoolSize ()
	Returns configured maximum number of cached pool entries.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Pool >
std::shared_ptr< rogue::interfaces::stream::Pool >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Slave >
std::shared_ptr< rogue::interfaces::stream::Slave >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Static Public Member Functions
static std::shared_ptr< rogue::protocols::udp::Client >	create (std::string host, uint16_t port, bool jumbo)
	Creates a UDP client endpoint.

static void	setup_python ()
	Registers Python bindings for this class.

Static Public Member Functions inherited from rogue::protocols::udp::Core
static void	setup_python ()
	Registers Python bindings for this class.

Static Public Member Functions inherited from rogue::interfaces::stream::Master
static std::shared_ptr< rogue::interfaces::stream::Master >	create ()
	Creates a stream master.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Slave
static std::shared_ptr< rogue::interfaces::stream::Slave >	create ()
	Creates a new stream slave.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Pool
static void	setup_python ()
	Registers this type with Python bindings.

Additional Inherited Members
Protected Member Functions inherited from rogue::interfaces::stream::Pool
std::shared_ptr< rogue::interfaces::stream::Buffer >	allocBuffer (uint32_t size, uint32_t *total)
	Allocate a buffer passed size.

std::shared_ptr< rogue::interfaces::stream::Buffer >	createBuffer (void *data, uint32_t meta, uint32_t size, uint32_t alloc)
	Creates a Buffer with a pre-allocated data block.

void	decCounter (uint32_t alloc)
	Decrements allocation counter.

Protected Attributes inherited from rogue::protocols::udp::Core
std::shared_ptr< rogue::Logging >	udpLog_

bool	jumbo_

int32_t	fd_

struct sockaddr_in	remAddr_

struct timeval	timeout_

std::thread *	thread_

bool	threadEn_

std::mutex	udpMtx_

Detailed Description

UDP stream endpoint that sends to and receives from a remote host.

Client combines UDP transport (udp::Core) with Rogue stream interfaces:

stream::Slave: accepts outbound frames and transmits them as UDP datagrams.
stream::Master: emits received UDP datagrams as Rogue frames.

A background receive thread continuously reads datagrams and forwards them downstream as frames from the local frame pool.

Definition at line 51 of file Client.h.

Constructor & Destructor Documentation

◆ Client()

rogue::protocols::udp::Client::Client	(	std::string	host,
		uint16_t	port,
		bool	jumbo
	)

Constructs a UDP client endpoint.

Creator.

This constructor is a low-level C++ allocation path. Prefer create() when shared ownership or Python exposure is required.

Resolves host address, creates UDP socket, initializes frame pool sizing, and starts background receive thread.

Parameters

host	Remote hostname or IPv4 address.
port	Remote UDP port.
jumbo	`true` for jumbo payload sizing; `false` for standard MTU.

Definition at line 52 of file Client.cpp.

◆ ~Client()

rogue::protocols::udp::Client::~Client ( )

Destroys the UDP client endpoint.

Destructor.

Definition at line 107 of file Client.cpp.

Member Function Documentation

◆ acceptFrame()

void rogue::protocols::udp::Client::acceptFrame ( std::shared_ptr< rogue::interfaces::stream::Frame > frame )

virtual

Accepts an outbound stream frame and transmits it as UDP datagrams.

Accept a frame from master.

Each non-empty frame buffer payload is sent as a UDP datagram. Writes use select() with configured timeout; timeout/failure is logged.

Parameters

frame Outbound frame to transmit.

Reimplemented from rogue::interfaces::stream::Slave.

Definition at line 121 of file Client.cpp.

◆ create()

rogue::protocols::udp::ClientPtr rogue::protocols::udp::Client::create	(	std::string	host,
		uint16_t	port,
		bool	jumbo
	)

static

Creates a UDP client endpoint.

Class creation.

Parameter semantics are identical to the constructor; see Client() for endpoint setup behavior details. This static factory is the preferred construction path when the object is shared across Rogue graph connections or exposed to Python. It returns std::shared_ptr ownership compatible with Rogue pointer typedefs.

Parameters

host	Remote hostname or IPv4 address.
port	Remote UDP port.
jumbo	`true` for jumbo payload sizing; `false` for standard MTU.

Returns: Shared pointer to the created client.

Company : SLAC National Accelerator Laboratory

Description:

UDP Client

This file is part of the rogue software platform. It is subject to the license terms in the LICENSE.txt file found in the top-level directory of this distribution and at: https://confluence.slac.stanford.edu/display/ppareg/LICENSE.html. No part of the rogue software platform, including this file, may be copied, modified, propagated, or distributed except according to the terms

contained in the LICENSE.txt file.

Definition at line 46 of file Client.cpp.

◆ setup_python()

void rogue::protocols::udp::Client::setup_python ( )

static

Registers Python bindings for this class.

Definition at line 229 of file Client.cpp.

◆ stop()

void rogue::protocols::udp::Client::stop ( )

virtual

Stops the UDP client endpoint.

Stops receive thread, joins thread, and closes socket.

Reimplemented from rogue::interfaces::stream::Master.

Definition at line 111 of file Client.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/rogue/rogue/include/rogue/protocols/udp/Client.h
/home/runner/work/rogue/rogue/src/rogue/protocols/udp/Client.cpp
