RSSI protocol controller. More...

#include <Controller.h>

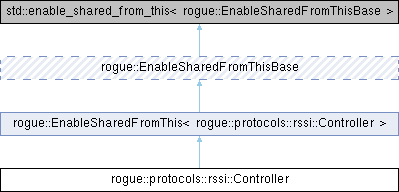

Inheritance diagram for rogue::protocols::rssi::Controller:

Public Member Functions
	Controller (uint32_t segSize, std::shared_ptr< rogue::protocols::rssi::Transport > tran, std::shared_ptr< rogue::protocols::rssi::Application > app, bool server)
	Constructs an RSSI controller.

	~Controller ()
	Destroys the controller and stops background processing.

void	stopQueue ()
	Stops internal queues used by controller worker paths.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqFrame (uint32_t size)
	Allocates a frame for transport-path transmission.

void	transportRx (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Processes a frame received from transport.

std::shared_ptr< rogue::interfaces::stream::Frame >	applicationTx ()
	Gets next frame to transmit from the application side.

void	applicationRx (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Processes a frame received from the application side.

bool	getOpen ()
	Returns whether the RSSI link is in open state.

uint32_t	getDownCount ()
	Returns link down transition counter.

uint32_t	getDropCount ()
	Returns dropped-frame counter.

uint32_t	getRetranCount ()
	Returns retransmit counter.

bool	getLocBusy ()
	Returns local busy state.

uint32_t	getLocBusyCnt ()
	Returns local busy event counter.

bool	getRemBusy ()
	Returns remote busy state.

uint32_t	getRemBusyCnt ()
	Returns remote busy event counter.

void	setLocTryPeriod (uint32_t val)
	Sets local connection retry period.

uint32_t	getLocTryPeriod ()
	Gets local connection retry period.

void	setLocMaxBuffers (uint8_t val)
	Sets local max outstanding buffers parameter.

uint8_t	getLocMaxBuffers ()
	Gets local max outstanding buffers parameter.

void	setLocMaxSegment (uint16_t val)
	Sets local max segment size.

uint16_t	getLocMaxSegment ()
	Gets local max segment size.

void	setLocCumAckTout (uint16_t val)
	Sets local cumulative ACK timeout.

uint16_t	getLocCumAckTout ()
	Gets local cumulative ACK timeout.

void	setLocRetranTout (uint16_t val)
	Sets local retransmit timeout.

uint16_t	getLocRetranTout ()
	Gets local retransmit timeout.

void	setLocNullTout (uint16_t val)
	Sets local null-segment timeout.

uint16_t	getLocNullTout ()
	Gets local null-segment timeout.

void	setLocMaxRetran (uint8_t val)
	Sets local max retransmit count.

uint8_t	getLocMaxRetran ()
	Gets local max retransmit count.

void	setLocMaxCumAck (uint8_t val)
	Sets local max cumulative ACK interval.

uint8_t	getLocMaxCumAck ()
	Gets local max cumulative ACK interval.

uint8_t	curMaxBuffers ()
	Gets negotiated max outstanding buffers.

uint16_t	curMaxSegment ()
	Gets negotiated max segment size.

uint16_t	curCumAckTout ()
	Gets negotiated cumulative ACK timeout.

uint16_t	curRetranTout ()
	Gets negotiated retransmit timeout.

uint16_t	curNullTout ()
	Gets negotiated null-segment timeout.

uint8_t	curMaxRetran ()
	Gets negotiated max retransmit count.

uint8_t	curMaxCumAck ()
	Gets negotiated max cumulative ACK interval.

void	resetCounters ()
	Resets runtime counters.

void	setTimeout (uint32_t timeout)
	Sets timeout in microseconds for frame transmits.

void	stop ()
	Stops the RSSI connection and worker thread.

void	start ()
	Starts or restarts RSSI connection establishment.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::protocols::rssi::Controller >
std::shared_ptr< rogue::protocols::rssi::Controller >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThisBase
virtual	~EnableSharedFromThisBase ()
	Virtual destructor for polymorphic base usage.

Static Public Member Functions
static std::shared_ptr< rogue::protocols::rssi::Controller >	create (uint32_t segSize, std::shared_ptr< rogue::protocols::rssi::Transport > tran, std::shared_ptr< rogue::protocols::rssi::Application > app, bool server)
	Factory method to create an RSSI controller.

Detailed Description

RSSI protocol controller.

Implements connection state, flow control, retransmission, and parameter negotiation between RSSI application and transport endpoints.

Protocol reference: https://confluence.slac.stanford.edu/x/1IyfD

Class relationship within rogue::protocols::rssi:

Client / Server: convenience wrappers that construct and wire the RSSI stack for endpoint role.
Transport: stream-facing link side for RSSI frames to/from the lower transport (for example UDP-based links).
Application: stream-facing payload side used by upper protocol layers.
Header: codec/container for RSSI header fields on stream frames.
Controller (this class): central state machine and policy engine connecting Transport and Application.

Operationally, frames received from Transport are decoded and processed for ACK/SYN/state transitions and delivery, while Application frames are segmented/tracked for reliable delivery according to negotiated parameters.

Definition at line 63 of file Controller.h.

Constructor & Destructor Documentation

◆ Controller()

rogue::protocols::rssi::Controller::Controller	(	uint32_t	segSize,
		std::shared_ptr< rogue::protocols::rssi::Transport >	tran,
		std::shared_ptr< rogue::protocols::rssi::Application >	app,
		bool	server
	)

Constructs an RSSI controller.

Creator.

This constructor is a low-level C++ allocation path. Prefer create() when shared ownership or Python exposure is required.

Parameters

segSize	Initial local max segment size.
tran	Transport endpoint used for link traffic.
app	Application endpoint used for payload traffic.
server	True to run the server-side handshake behavior.

Definition at line 54 of file Controller.cpp.

◆ ~Controller()

rogue::protocols::rssi::Controller::~Controller ( )

Destroys the controller and stops background processing.

Destructor.

Definition at line 122 of file Controller.cpp.

Member Function Documentation

◆ applicationRx()

void rogue::protocols::rssi::Controller::applicationRx ( std::shared_ptr< rogue::interfaces::stream::Frame > frame )

Processes a frame received from the application side.

Frame received at application interface.

Parameters

frame Input frame from application endpoint.

Definition at line 365 of file Controller.cpp.

◆ applicationTx()

rogue::interfaces::stream::FramePtr rogue::protocols::rssi::Controller::applicationTx ( )

Gets next frame to transmit from the application side.

Frame transmit at application interface.

Returns: Frame ready for transmit, or null when none is available.

Definition at line 337 of file Controller.cpp.

◆ create()

rogue::protocols::rssi::ControllerPtr rogue::protocols::rssi::Controller::create	(	uint32_t	segSize,
		std::shared_ptr< rogue::protocols::rssi::Transport >	tran,
		std::shared_ptr< rogue::protocols::rssi::Application >	app,
		bool	server
	)

static

Factory method to create an RSSI controller.

Class creation.

Parameter semantics are identical to the constructor; see Controller() for endpoint wiring details. This static factory is the preferred construction path when the object is shared across Rogue graph connections or exposed to Python. It returns std::shared_ptr ownership compatible with Rogue pointer typedefs.

Parameters

segSize	Initial local maximum segment size.
tran	Transport endpoint used for link traffic.
app	Application endpoint used for payload traffic.
server	True to run server-side handshake behavior.

Returns: Shared pointer to the created controller.

Company : SLAC National Accelerator Laboratory

Description:

RSSI Controller

This file is part of the rogue software platform. It is subject to the license terms in the LICENSE.txt file found in the top-level directory of this distribution and at: https://confluence.slac.stanford.edu/display/ppareg/LICENSE.html. No part of the rogue software platform, including this file, may be copied, modified, propagated, or distributed except according to the terms

contained in the LICENSE.txt file.

Definition at line 45 of file Controller.cpp.

◆ curCumAckTout()

uint16_t rogue::protocols::rssi::Controller::curCumAckTout ( )

Gets negotiated cumulative ACK timeout.

Returns: Negotiated timeout in protocol time units.

Definition at line 562 of file Controller.cpp.

◆ curMaxBuffers()

uint8_t rogue::protocols::rssi::Controller::curMaxBuffers ( )

Gets negotiated max outstanding buffers.

Returns: Negotiated max outstanding buffers.

Definition at line 554 of file Controller.cpp.

◆ curMaxCumAck()

uint8_t rogue::protocols::rssi::Controller::curMaxCumAck ( )

Gets negotiated max cumulative ACK interval.

Returns: Negotiated packets between cumulative ACKs.

Definition at line 578 of file Controller.cpp.

◆ curMaxRetran()

uint8_t rogue::protocols::rssi::Controller::curMaxRetran ( )

Gets negotiated max retransmit count.

Returns: Negotiated max retransmit attempts.

Definition at line 574 of file Controller.cpp.

◆ curMaxSegment()

uint16_t rogue::protocols::rssi::Controller::curMaxSegment ( )

Gets negotiated max segment size.

Returns: Negotiated segment size in bytes.

Definition at line 558 of file Controller.cpp.

◆ curNullTout()

uint16_t rogue::protocols::rssi::Controller::curNullTout ( )

Gets negotiated null-segment timeout.

Returns: Negotiated timeout in protocol time units.

Definition at line 570 of file Controller.cpp.

◆ curRetranTout()

uint16_t rogue::protocols::rssi::Controller::curRetranTout ( )

Gets negotiated retransmit timeout.

Returns: Negotiated timeout in protocol time units.

Definition at line 566 of file Controller.cpp.

◆ getDownCount()

uint32_t rogue::protocols::rssi::Controller::getDownCount ( )

Returns link down transition counter.

Get Down Count.

Returns: Number of times link entered down/closed state.

Definition at line 420 of file Controller.cpp.

◆ getDropCount()

uint32_t rogue::protocols::rssi::Controller::getDropCount ( )

Returns dropped-frame counter.

Get Drop Count.

Returns: Number of dropped received frames.

Definition at line 425 of file Controller.cpp.

◆ getLocBusy()

bool rogue::protocols::rssi::Controller::getLocBusy ( )

Returns local busy state.

Get locBusy.

Returns: True when local endpoint is currently busy.

Definition at line 435 of file Controller.cpp.

◆ getLocBusyCnt()

uint32_t rogue::protocols::rssi::Controller::getLocBusyCnt ( )

Returns local busy event counter.

Get locBusyCnt.

Returns: Number of local busy assertions.

Definition at line 443 of file Controller.cpp.

◆ getLocCumAckTout()

uint16_t rogue::protocols::rssi::Controller::getLocCumAckTout ( )

Gets local cumulative ACK timeout.

Returns: Timeout in protocol time units.

Definition at line 504 of file Controller.cpp.

◆ getLocMaxBuffers()

uint8_t rogue::protocols::rssi::Controller::getLocMaxBuffers ( )

Gets local max outstanding buffers parameter.

Returns: Maximum outstanding buffers.

Definition at line 480 of file Controller.cpp.

◆ getLocMaxCumAck()

uint8_t rogue::protocols::rssi::Controller::getLocMaxCumAck ( )

Gets local max cumulative ACK interval.

Returns: Maximum number of packets before cumulative ACK.

Definition at line 550 of file Controller.cpp.

◆ getLocMaxRetran()

uint8_t rogue::protocols::rssi::Controller::getLocMaxRetran ( )

Gets local max retransmit count.

Returns: Maximum retransmit attempts.

Definition at line 540 of file Controller.cpp.

◆ getLocMaxSegment()

uint16_t rogue::protocols::rssi::Controller::getLocMaxSegment ( )

Gets local max segment size.

Returns: Segment size in bytes.

Definition at line 492 of file Controller.cpp.

◆ getLocNullTout()

uint16_t rogue::protocols::rssi::Controller::getLocNullTout ( )

Gets local null-segment timeout.

Returns: Timeout in protocol time units.

Definition at line 528 of file Controller.cpp.

◆ getLocRetranTout()

uint16_t rogue::protocols::rssi::Controller::getLocRetranTout ( )

Gets local retransmit timeout.

Returns: Timeout in protocol time units.

Definition at line 516 of file Controller.cpp.

◆ getLocTryPeriod()

uint32_t rogue::protocols::rssi::Controller::getLocTryPeriod ( )

Gets local connection retry period.

Returns: Retry period in microseconds.

Definition at line 467 of file Controller.cpp.

◆ getOpen()

bool rogue::protocols::rssi::Controller::getOpen ( )

Returns whether the RSSI link is in open state.

Get state.

Returns: True when connection state is open.

Definition at line 415 of file Controller.cpp.

◆ getRemBusy()

bool rogue::protocols::rssi::Controller::getRemBusy ( )

Returns remote busy state.

Get remBusy.

Returns: True when remote endpoint reports busy.

Definition at line 448 of file Controller.cpp.

◆ getRemBusyCnt()

uint32_t rogue::protocols::rssi::Controller::getRemBusyCnt ( )

Returns remote busy event counter.

Get remBusyCnt.

Returns: Number of remote busy indications seen.

Definition at line 453 of file Controller.cpp.

◆ getRetranCount()

uint32_t rogue::protocols::rssi::Controller::getRetranCount ( )

Returns retransmit counter.

Get Retransmit Count.

Returns: Number of retransmitted frames.

Definition at line 430 of file Controller.cpp.

◆ reqFrame()

rogue::interfaces::stream::FramePtr rogue::protocols::rssi::Controller::reqFrame ( uint32_t size )

Allocates a frame for transport-path transmission.

Transport frame allocation request.

Parameters

size	Minimum payload size in bytes.

Returns: Allocated frame.

Definition at line 158 of file Controller.cpp.

◆ resetCounters()

void rogue::protocols::rssi::Controller::resetCounters ( )

Resets runtime counters.

Definition at line 582 of file Controller.cpp.

◆ setLocCumAckTout()

void rogue::protocols::rssi::Controller::setLocCumAckTout ( uint16_t val )

Sets local cumulative ACK timeout.

Parameters

val	Timeout in protocol time units.

Definition at line 496 of file Controller.cpp.

◆ setLocMaxBuffers()

void rogue::protocols::rssi::Controller::setLocMaxBuffers ( uint8_t val )

Sets local max outstanding buffers parameter.

Parameters

val	Maximum outstanding buffers.

Definition at line 471 of file Controller.cpp.

◆ setLocMaxCumAck()

void rogue::protocols::rssi::Controller::setLocMaxCumAck ( uint8_t val )

Sets local max cumulative ACK interval.

Parameters

val	Maximum number of packets before cumulative ACK.

Definition at line 544 of file Controller.cpp.

◆ setLocMaxRetran()

void rogue::protocols::rssi::Controller::setLocMaxRetran ( uint8_t val )

Sets local max retransmit count.

Parameters

val	Maximum retransmit attempts.

Definition at line 532 of file Controller.cpp.

◆ setLocMaxSegment()

void rogue::protocols::rssi::Controller::setLocMaxSegment ( uint16_t val )

Sets local max segment size.

Parameters

val	Segment size in bytes.

Definition at line 484 of file Controller.cpp.

◆ setLocNullTout()

void rogue::protocols::rssi::Controller::setLocNullTout ( uint16_t val )

Sets local null-segment timeout.

Parameters

val	Timeout in protocol time units.

Definition at line 520 of file Controller.cpp.

◆ setLocRetranTout()

void rogue::protocols::rssi::Controller::setLocRetranTout ( uint16_t val )

Sets local retransmit timeout.

Parameters

val	Timeout in protocol time units.

Definition at line 508 of file Controller.cpp.

◆ setLocTryPeriod()

void rogue::protocols::rssi::Controller::setLocTryPeriod ( uint32_t val )

Sets local connection retry period.

Parameters

val	Retry period in microseconds.

Definition at line 457 of file Controller.cpp.

◆ setTimeout()

void rogue::protocols::rssi::Controller::setTimeout ( uint32_t timeout )

Sets timeout in microseconds for frame transmits.

Set timeout for frame transmits in microseconds.

Parameters

timeout Timeout in microseconds.

Definition at line 980 of file Controller.cpp.

◆ start()

void rogue::protocols::rssi::Controller::start ( )

Starts or restarts RSSI connection establishment.

Start.

Definition at line 144 of file Controller.cpp.

◆ stop()

void rogue::protocols::rssi::Controller::stop ( )

Stops the RSSI connection and worker thread.

Close.

Definition at line 132 of file Controller.cpp.

◆ stopQueue()

void rogue::protocols::rssi::Controller::stopQueue ( )

Stops internal queues used by controller worker paths.

Stop queues.

Definition at line 127 of file Controller.cpp.

◆ transportRx()

void rogue::protocols::rssi::Controller::transportRx ( std::shared_ptr< rogue::interfaces::stream::Frame > frame )

Processes a frame received from transport.

Frame received at transport interface.

Parameters

frame Input frame from transport endpoint.

Definition at line 193 of file Controller.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/rogue/rogue/include/rogue/protocols/rssi/Controller.h
/home/runner/work/rogue/rogue/src/rogue/protocols/rssi/Controller.cpp

Public Member Functions

Static Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ Controller()

◆ ~Controller()

Member Function Documentation

◆ applicationRx()

◆ applicationTx()

◆ create()

Company : SLAC National Accelerator Laboratory

RSSI Controller

contained in the LICENSE.txt file.

◆ curCumAckTout()

◆ curMaxBuffers()

◆ curMaxCumAck()

◆ curMaxRetran()

◆ curMaxSegment()

◆ curNullTout()

◆ curRetranTout()

◆ getDownCount()

◆ getDropCount()

◆ getLocBusy()

◆ getLocBusyCnt()

◆ getLocCumAckTout()

◆ getLocMaxBuffers()

◆ getLocMaxCumAck()

◆ getLocMaxRetran()

◆ getLocMaxSegment()

◆ getLocNullTout()

◆ getLocRetranTout()

◆ getLocTryPeriod()

◆ getOpen()

◆ getRemBusy()

◆ getRemBusyCnt()

◆ getRetranCount()

◆ reqFrame()

◆ resetCounters()

◆ setLocCumAckTout()

◆ setLocMaxBuffers()

◆ setLocMaxCumAck()

◆ setLocMaxRetran()

◆ setLocMaxSegment()

◆ setLocNullTout()

◆ setLocRetranTout()

◆ setLocTryPeriod()

◆ setTimeout()

◆ start()

◆ stop()

◆ stopQueue()

◆ transportRx()
