In-place inverter for SLAC AXI Batcher v1 framing. More...

#include <InverterV1.h>

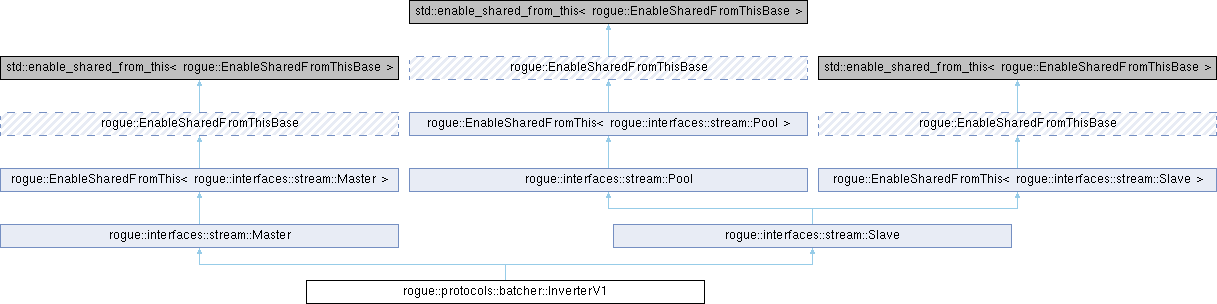

Inheritance diagram for rogue::protocols::batcher::InverterV1:

Public Member Functions
	InverterV1 ()
	Constructs an `InverterV1` instance.

	~InverterV1 ()
	Destroys the inverter.

void	acceptFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Accepts, transforms, and forwards one batcher v1 frame.

Public Member Functions inherited from rogue::interfaces::stream::Master
	Master ()
	Constructs a stream master.

virtual	~Master ()
	Destroys the stream master.

uint32_t	slaveCount ()
	Returns the number of attached slaves.

void	addSlave (std::shared_ptr< rogue::interfaces::stream::Slave > slave)
	Attaches a downstream slave.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqFrame (uint32_t size, bool zeroCopyEn)
	Requests allocation of a new frame from the primary slave.

void	sendFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Sends a frame to all attached slaves.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures a frame is represented by a single buffer.

virtual void	stop ()
	Stops frame generation and shuts down associated threads.

void	equalsPy (boost::python::object p)
	Supports `==` operator usage from Python.

boost::python::object	rshiftPy (boost::python::object p)
	Supports `>>` operator usage from Python.

void	operator== (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Supports `==` operator usage in C++.

std::shared_ptr< rogue::interfaces::stream::Slave > &	operator>> (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Connects this master to a slave via stream chaining operator.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Master >
std::shared_ptr< rogue::interfaces::stream::Master >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThisBase
virtual	~EnableSharedFromThisBase ()
	Virtual destructor for polymorphic base usage.

Public Member Functions inherited from rogue::interfaces::stream::Slave
	Slave ()
	Constructs a stream slave.

virtual	~Slave ()
	Destroys the stream slave.

virtual void	stop ()
	Shuts down threads associated with this object.

void	setDebug (uint32_t debug, std::string name)
	Sets debug message verbosity and logger name.

uint64_t	getFrameCount ()
	Returns frame counter.

uint64_t	getByteCount ()
	Returns byte counter.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures frame is backed by a single buffer.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqLocalFrame (uint32_t size, bool zeroCopyEn)
	Services a local frame allocation request through this object's pool interface.

boost::python::object	lshiftPy (boost::python::object p)
	Supports `<<` operator usage from Python.

std::shared_ptr< rogue::interfaces::stream::Master > &	operator<< (std::shared_ptr< rogue::interfaces::stream::Master > &other)
	Connects this slave to a master via stream chaining operator.

Public Member Functions inherited from rogue::interfaces::stream::Pool
	Pool ()
	Constructs a pool with default allocation behavior enabled.

virtual	~Pool ()
	Destroys the pool and releases any cached buffer storage.

uint32_t	getAllocBytes ()
	Returns total currently allocated bytes.

uint32_t	getAllocCount ()
	Returns total currently allocated buffer count.

virtual std::shared_ptr< rogue::interfaces::stream::Frame >	acceptReq (uint32_t size, bool zeroCopyEn)
	Services a frame allocation request from a master.

virtual void	retBuffer (uint8_t *data, uint32_t meta, uint32_t size)
	Returns buffer data to the allocator.

void	setFixedSize (uint32_t size)
	Sets fixed-size mode.

uint32_t	getFixedSize ()
	Returns fixed-size allocation setting.

void	setPoolSize (uint32_t size)
	Sets buffer pool size.

uint32_t	getPoolSize ()
	Returns configured maximum number of cached pool entries.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Pool >
std::shared_ptr< rogue::interfaces::stream::Pool >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Slave >
std::shared_ptr< rogue::interfaces::stream::Slave >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Static Public Member Functions
static std::shared_ptr< rogue::protocols::batcher::InverterV1 >	create ()
	Creates an `InverterV1` instance.

static void	setup_python ()
	Registers Python bindings for this class.

Static Public Member Functions inherited from rogue::interfaces::stream::Master
static std::shared_ptr< rogue::interfaces::stream::Master >	create ()
	Creates a stream master.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Slave
static std::shared_ptr< rogue::interfaces::stream::Slave >	create ()
	Creates a new stream slave.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Pool
static void	setup_python ()
	Registers this type with Python bindings.

Additional Inherited Members
Protected Member Functions inherited from rogue::interfaces::stream::Pool
std::shared_ptr< rogue::interfaces::stream::Buffer >	allocBuffer (uint32_t size, uint32_t *total)
	Allocate a buffer passed size.

std::shared_ptr< rogue::interfaces::stream::Buffer >	createBuffer (void *data, uint32_t meta, uint32_t size, uint32_t alloc)
	Creates a Buffer with a pre-allocated data block.

void	decCounter (uint32_t alloc)
	Decrements allocation counter.

Detailed Description

In-place inverter for SLAC AXI Batcher v1 framing.

Protocol reference: https://confluence.slac.stanford.edu/x/th1SDg

InverterV1 uses CoreV1 metadata to reinterpret/shift record tail data inside the original frame payload. This produces a transformed frame layout expected by downstream consumers without allocating one frame per record. It is not a batching or unbatching stage: one input frame yields one output frame after in-place reformatting.

InverterV1 transforms a batcher v1 frame by copying per-record tail fields into the header/tail positions expected by downstream consumers and trimming the final tail from payload. The transformed frame is then forwarded. Use SplitterV1 when true unbatching (one output frame per record) is desired.

Threading model:

No internal worker thread is created.
Processing executes synchronously in the caller thread of acceptFrame().

Definition at line 56 of file InverterV1.h.

Constructor & Destructor Documentation

◆ InverterV1()

rogue::protocols::batcher::InverterV1::InverterV1 ( )

Constructs an InverterV1 instance.

Creator.

This constructor is a low-level C++ allocation path. Prefer create() when shared ownership or Python exposure is required.

Definition at line 61 of file InverterV1.cpp.

◆ ~InverterV1()

rogue::protocols::batcher::InverterV1::~InverterV1 ( )

Destroys the inverter.

Deconstructor.

Definition at line 64 of file InverterV1.cpp.

Member Function Documentation

◆ acceptFrame()

void rogue::protocols::batcher::InverterV1::acceptFrame ( std::shared_ptr< rogue::interfaces::stream::Frame > frame )

virtual

Accepts, transforms, and forwards one batcher v1 frame.

Accept a frame from master.

Parameters

frame Input frame to transform.

Reimplemented from rogue::interfaces::stream::Slave.

Definition at line 67 of file InverterV1.cpp.

◆ create()

rogue::protocols::batcher::InverterV1Ptr rogue::protocols::batcher::InverterV1::create ( )

static

Creates an InverterV1 instance.

Class creation.

This static factory is the preferred construction path when the object is shared across Rogue graph connections or exposed to Python. It returns std::shared_ptr ownership compatible with Rogue pointer typedefs.

Returns: Shared pointer to the created inverter.

Company : SLAC National Accelerator Laboratory

Description:

SLAC Inverter Version 1

This file is part of the rogue software platform. It is subject to the license terms in the LICENSE.txt file found in the top-level directory of this distribution and at: https://confluence.slac.stanford.edu/display/ppareg/LICENSE.html. No part of the rogue software platform, including this file, may be copied, modified, propagated, or distributed except according to the terms

contained in the LICENSE.txt file.

Definition at line 46 of file InverterV1.cpp.

◆ setup_python()

void rogue::protocols::batcher::InverterV1::setup_python ( )

static

Registers Python bindings for this class.

Setup class in python.

Definition at line 52 of file InverterV1.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/rogue/rogue/include/rogue/protocols/batcher/InverterV1.h
/home/runner/work/rogue/rogue/src/rogue/protocols/batcher/InverterV1.cpp
