Stream frame-rate dropper. More...

#include <RateDrop.h>

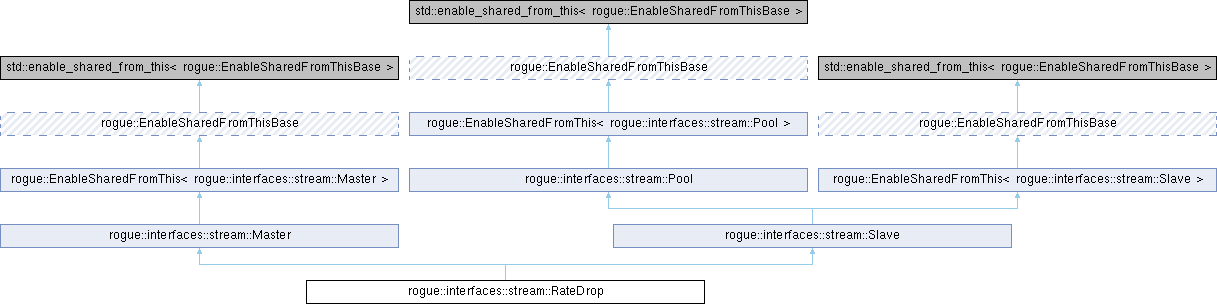

Inheritance diagram for rogue::interfaces::stream::RateDrop:

Public Member Functions
	RateDrop (bool period, double value)
	Constructs a rate-drop filter.

	~RateDrop ()
	Destroys the rate-drop filter.

void	acceptFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Receives a frame and drops/forwards according to configured rate policy.

Public Member Functions inherited from rogue::interfaces::stream::Master
	Master ()
	Constructs a stream master.

virtual	~Master ()
	Destroys the stream master.

uint32_t	slaveCount ()
	Returns the number of attached slaves.

void	addSlave (std::shared_ptr< rogue::interfaces::stream::Slave > slave)
	Attaches a downstream slave.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqFrame (uint32_t size, bool zeroCopyEn)
	Requests allocation of a new frame from the primary slave.

void	sendFrame (std::shared_ptr< rogue::interfaces::stream::Frame > frame)
	Sends a frame to all attached slaves.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures a frame is represented by a single buffer.

virtual void	stop ()
	Stops frame generation and shuts down associated threads.

void	equalsPy (boost::python::object p)
	Supports `==` operator usage from Python.

boost::python::object	rshiftPy (boost::python::object p)
	Supports `>>` operator usage from Python.

void	operator== (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Supports `==` operator usage in C++.

std::shared_ptr< rogue::interfaces::stream::Slave > &	operator>> (std::shared_ptr< rogue::interfaces::stream::Slave > &other)
	Connects this master to a slave via stream chaining operator.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Master >
std::shared_ptr< rogue::interfaces::stream::Master >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThisBase
virtual	~EnableSharedFromThisBase ()
	Virtual destructor for polymorphic base usage.

Public Member Functions inherited from rogue::interfaces::stream::Slave
	Slave ()
	Constructs a stream slave.

virtual	~Slave ()
	Destroys the stream slave.

virtual void	stop ()
	Shuts down threads associated with this object.

void	setDebug (uint32_t debug, std::string name)
	Sets debug message verbosity and logger name.

uint64_t	getFrameCount ()
	Returns frame counter.

uint64_t	getByteCount ()
	Returns byte counter.

bool	ensureSingleBuffer (std::shared_ptr< rogue::interfaces::stream::Frame > &frame, bool reqEn)
	Ensures frame is backed by a single buffer.

std::shared_ptr< rogue::interfaces::stream::Frame >	reqLocalFrame (uint32_t size, bool zeroCopyEn)
	Services a local frame allocation request through this object's pool interface.

boost::python::object	lshiftPy (boost::python::object p)
	Supports `<<` operator usage from Python.

std::shared_ptr< rogue::interfaces::stream::Master > &	operator<< (std::shared_ptr< rogue::interfaces::stream::Master > &other)
	Connects this slave to a master via stream chaining operator.

Public Member Functions inherited from rogue::interfaces::stream::Pool
	Pool ()
	Constructs a pool with default allocation behavior enabled.

virtual	~Pool ()
	Destroys the pool and releases any cached buffer storage.

uint32_t	getAllocBytes ()
	Returns total currently allocated bytes.

uint32_t	getAllocCount ()
	Returns total currently allocated buffer count.

virtual std::shared_ptr< rogue::interfaces::stream::Frame >	acceptReq (uint32_t size, bool zeroCopyEn)
	Services a frame allocation request from a master.

virtual void	retBuffer (uint8_t *data, uint32_t meta, uint32_t size)
	Returns buffer data to the allocator.

void	setFixedSize (uint32_t size)
	Sets fixed-size mode.

uint32_t	getFixedSize ()
	Returns fixed-size allocation setting.

void	setPoolSize (uint32_t size)
	Sets buffer pool size.

uint32_t	getPoolSize ()
	Returns configured maximum number of cached pool entries.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Pool >
std::shared_ptr< rogue::interfaces::stream::Pool >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Public Member Functions inherited from rogue::EnableSharedFromThis< rogue::interfaces::stream::Slave >
std::shared_ptr< rogue::interfaces::stream::Slave >	shared_from_this ()
	Returns a `shared_ptr<T>` for this instance.

Static Public Member Functions
static std::shared_ptr< rogue::interfaces::stream::RateDrop >	create (bool period, double value)
	Creates a rate-drop filter.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Master
static std::shared_ptr< rogue::interfaces::stream::Master >	create ()
	Creates a stream master.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Slave
static std::shared_ptr< rogue::interfaces::stream::Slave >	create ()
	Creates a new stream slave.

static void	setup_python ()
	Registers this type with Python bindings.

Static Public Member Functions inherited from rogue::interfaces::stream::Pool
static void	setup_python ()
	Registers this type with Python bindings.

Additional Inherited Members
Protected Member Functions inherited from rogue::interfaces::stream::Pool
std::shared_ptr< rogue::interfaces::stream::Buffer >	allocBuffer (uint32_t size, uint32_t *total)
	Allocate a buffer passed size.

std::shared_ptr< rogue::interfaces::stream::Buffer >	createBuffer (void *data, uint32_t meta, uint32_t size, uint32_t alloc)
	Creates a Buffer with a pre-allocated data block.

void	decCounter (uint32_t alloc)
	Decrements allocation counter.

Detailed Description

Stream frame-rate dropper.

Drops frames at a configured rate, either by frame count or by time period. In period mode, value is interpreted as seconds between kept frames. Otherwise, value is interpreted as number of dropped frames between kept frames.

Definition at line 41 of file RateDrop.h.

Constructor & Destructor Documentation

◆ RateDrop()

rogue::interfaces::stream::RateDrop::RateDrop	(	bool	period,
		double	value
	)

Constructs a rate-drop filter.

Creator with version constant.

This constructor is a low-level C++ allocation path. Prefer create() when shared ownership or Python exposure is required.

Parameters

period	Set to `true` for period mode; `false` for drop-count mode.
value	Period seconds or drop-count setting.

Definition at line 55 of file RateDrop.cpp.

◆ ~RateDrop()

rogue::interfaces::stream::RateDrop::~RateDrop ( )

Destroys the rate-drop filter.

Deconstructor.

Definition at line 78 of file RateDrop.cpp.

Member Function Documentation

◆ acceptFrame()

void rogue::interfaces::stream::RateDrop::acceptFrame ( std::shared_ptr< rogue::interfaces::stream::Frame > frame )

virtual

Receives a frame and drops/forwards according to configured rate policy.

Accept a frame from master.

Parameters

frame Incoming frame.

Reimplemented from rogue::interfaces::stream::Slave.

Definition at line 81 of file RateDrop.cpp.

◆ create()

rogue::interfaces::stream::RateDropPtr rogue::interfaces::stream::RateDrop::create	(	bool	period,
		double	value
	)

static

Creates a rate-drop filter.

Class creation.

Parameter semantics are identical to the constructor; see RateDrop() for mode and value behavior details. This static factory is the preferred construction path when the object is shared across Rogue graph connections or exposed to Python. It returns std::shared_ptr ownership compatible with Rogue pointer typedefs.

Parameters

period	Set to `true` for period mode; `false` for drop-count mode.
value	Period seconds or drop-count setting.

Returns: Shared pointer to the created rate-drop filter.

Company : SLAC National Accelerator Laboratory

Description :

Drops frames at a specified rate.

This file is part of the rogue software platform. It is subject to the license terms in the LICENSE.txt file found in the top-level directory of this distribution and at: https://confluence.slac.stanford.edu/display/ppareg/LICENSE.html. No part of the rogue software platform, including this file, may be copied, modified, propagated, or distributed except according to the terms

contained in the LICENSE.txt file.

Definition at line 40 of file RateDrop.cpp.

◆ setup_python()

void rogue::interfaces::stream::RateDrop::setup_python ( )

static

Registers this type with Python bindings.

Setup class in python.

Definition at line 46 of file RateDrop.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/rogue/rogue/include/rogue/interfaces/stream/RateDrop.h
/home/runner/work/rogue/rogue/src/rogue/interfaces/stream/RateDrop.cpp
