Formula Maker Tool

The Formula Maker Tool can help users construct [formula traces] for their plot. The tool can be opened by clicking the button in the top of the configuration section.

This tool is for ease of use, as users can also create formula traces by creating a trace that's prefixed with f://.

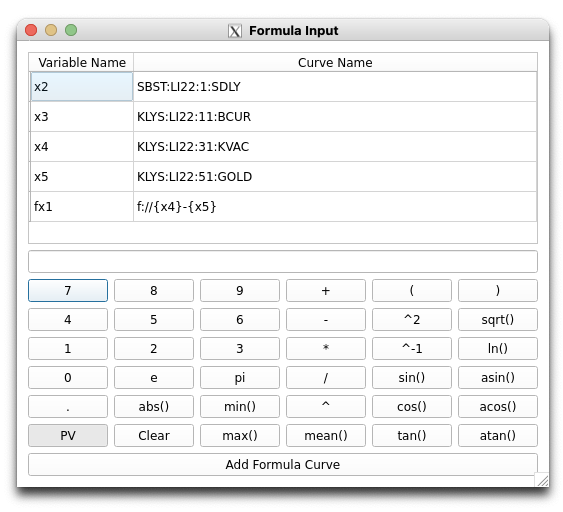

Image of Formula Constructor

Variable List

The top of the tool consists of a list of traces on the plot that users can use in their formula. The left column contains a variable name for each curve. To use a variable in the formula it should be surrounded by brackets {}.

Double-clicking a row will add the variable to the formula.

Calculator-like Section

The bottom part of the tool consists of a text box that users can type a formula in as well as buttons that users can use to build their formula.

When the user is finished making their formula, they can either hit Enter or click the button labeled "Add Formula Curve".

Formulas can include all basic arithmetic and binary operations, as well as mean and all functions in Python's standard math library.
