Architecture Overview

Squirrel Backend is a high-performance FastAPI application designed to manage and monitor EPICS (Experimental Physics and Industrial Control System) process variables (PVs). It handles 40-50K PVs with real-time monitoring, caching, and snapshot capabilities.

The system uses a distributed architecture with separate processes for API serving, PV monitoring, and background task processing, enabling horizontal scaling and fault isolation.

System Architecture

┌─────────────────────────────────────────────────────────────────────────────┐
│                              Load Balancer                                   │
└─────────────────────────────────────────────────────────────────────────────┘
                                      │
              ┌───────────────────────┼───────────────────────┐
              ▼                       ▼                       ▼
    ┌──────────────────┐   ┌──────────────────┐   ┌──────────────────┐
    │   API Instance   │   │   API Instance   │   │   API Instance   │
    │   (squirrel-api) │   │   (squirrel-api) │   │   (squirrel-api) │
    │   REST + WebSocket│   │   REST + WebSocket│   │   REST + WebSocket│
    └────────┬─────────┘   └────────┬─────────┘   └────────┬─────────┘
             │                      │                      │
             └──────────────────────┼──────────────────────┘
                                    │
                                    ▼
    ┌─────────────────────────────────────────────────────────────────────────┐
    │                               Redis                                      │
    │  • PV Value Cache (Hash: pv:values)                                     │
    │  • Pub/Sub (pv updates, WebSocket broadcasts)                           │
    │  • Subscription Registry (multi-instance WebSocket support)             │
    │  • Arq Job Queue                                                        │
    │  • Monitor Leader Election Lock                                         │
    └──────────────────────────────┬──────────────────────────────────────────┘
                                   │
          ┌────────────────────────┼────────────────────────┐
          ▼                        ▼                        ▼
┌──────────────────┐    ┌──────────────────┐    ┌──────────────────┐
│   PV Monitor     │    │   Arq Worker     │    │   Arq Worker     │
│ (squirrel-monitor)│    │ (squirrel-worker)│    │ (squirrel-worker)│
│ Single instance  │    │ Scalable         │    │ Scalable         │
│ Leader election  │    │                  │    │                  │
└────────┬─────────┘    └────────┬─────────┘    └────────┬─────────┘
         │                       │                       │
         └───────────────────────┼───────────────────────┘
                                 │
                                 ▼
    ┌─────────────────────────────────────────────────────────────────────────┐
    │                            PostgreSQL                                    │
    │  • PV metadata and configuration                                        │
    │  • Snapshots and snapshot values                                        │
    │  • Tags and tag groups                                                  │
    │  • Job tracking                                                         │
    └─────────────────────────────────────────────────────────────────────────┘
                                 │
                                 ▼
    ┌─────────────────────────────────────────────────────────────────────────┐
    │                         EPICS IOCs                                       │
    │  • 40-50K Process Variables                                             │
    │  • Channel Access protocol                                              │
    └─────────────────────────────────────────────────────────────────────────┘

Technology Stack

Category	Technology	Purpose
Framework	FastAPI 0.109+	REST API and WebSocket
Language	Python 3.11+	Async/await support
Database	PostgreSQL 16+	Primary data store
ORM	SQLAlchemy 2.0+ (async)	Database abstraction
Cache	Redis 7+	PV value caching, pub/sub
EPICS	aioca 1.7+	Async Channel Access
Task Queue	Arq	Redis-backed job queue
Server	Uvicorn	ASGI server

Directory Structure

squirrel-backend/
├── app/                          # Main application package
│   ├── main.py                   # FastAPI entry point (API-only)
│   ├── monitor_main.py           # Standalone PV monitor entry point
│   ├── worker.py                 # Arq worker configuration
│   ├── config.py                 # Pydantic settings management
│   ├── dependencies.py           # FastAPI dependency injection
│   │
│   ├── api/                      # API layer
│   │   ├── responses.py          # Response wrappers
│   │   └── v1/                   # API v1 endpoints
│   │       ├── router.py         # Main router aggregator
│   │       ├── pvs.py            # PV CRUD endpoints
│   │       ├── snapshots.py      # Snapshot operations
│   │       ├── tags.py           # Tag management
│   │       ├── jobs.py           # Job status tracking
│   │       ├── health.py         # Health monitoring
│   │       └── websocket.py      # Real-time PV updates
│   │
│   ├── services/                 # Business logic layer
│   │   ├── epics_service.py      # EPICS read/write (aioca)
│   │   ├── redis_service.py      # Redis cache management
│   │   ├── pv_monitor.py         # Background PV monitoring
│   │   ├── pv_service.py         # PV business logic
│   │   ├── snapshot_service.py   # Snapshot creation/restore
│   │   ├── tag_service.py        # Tag operations
│   │   ├── job_service.py        # Job tracking
│   │   ├── watchdog.py           # Health monitoring service
│   │   ├── circuit_breaker.py    # EPICS circuit breaker
│   │   ├── subscription_registry.py # Multi-instance WebSocket support
│   │   ├── bulk_insert_service.py# PostgreSQL COPY inserts
│   │   └── background_tasks.py   # Async background jobs
│   │
│   ├── tasks/                    # Arq task definitions
│   │   └── snapshot_tasks.py     # Snapshot create/restore tasks
│   │
│   ├── repositories/             # Data access layer
│   │   ├── base.py               # Base repository class
│   │   ├── pv_repository.py      # PV database operations
│   │   ├── snapshot_repository.py# Snapshot storage
│   │   ├── tag_repository.py     # Tag queries
│   │   └── job_repository.py     # Job tracking
│   │
│   ├── models/                   # SQLAlchemy ORM models
│   │   ├── base.py               # Base model with UUID/timestamps
│   │   ├── pv.py                 # PV model
│   │   ├── snapshot.py           # Snapshot models
│   │   ├── tag.py                # Tag models
│   │   └── job.py                # Job model
│   │
│   ├── schemas/                  # Pydantic DTOs
│   │   ├── common.py             # Common response wrappers
│   │   ├── pv.py                 # PV DTOs
│   │   ├── snapshot.py           # Snapshot DTOs
│   │   ├── tag.py                # Tag DTOs
│   │   └── job.py                # Job DTOs
│   │
│   └── db/                       # Database configuration
│       └── session.py            # Async engine and session factory
│
├── alembic/                      # Database migrations
├── docker/                       # Docker configuration
├── scripts/                      # Utility scripts
└── tests/                        # Test suite

Design Patterns

Pattern	Usage
Repository	Abstracts database access in repositories/
Service Layer	Business logic separated from API handlers
Dependency Injection	FastAPI Depends() for resources
Background Tasks	Arq queue for long operations with Job tracking
Singleton Services	EPICS, Redis as module-level instances
DTO Pattern	Pydantic schemas separate from ORM models
Cache-Aside	Redis cache with Watchdog freshness checks
Diff-Based Streaming	WebSocket sends only changed PVs
Circuit Breaker	Fail-fast on unresponsive IOCs
Leader Election	Single PV monitor via Redis lock
Continuation Token Pagination	ID-based (not offset) for scalability

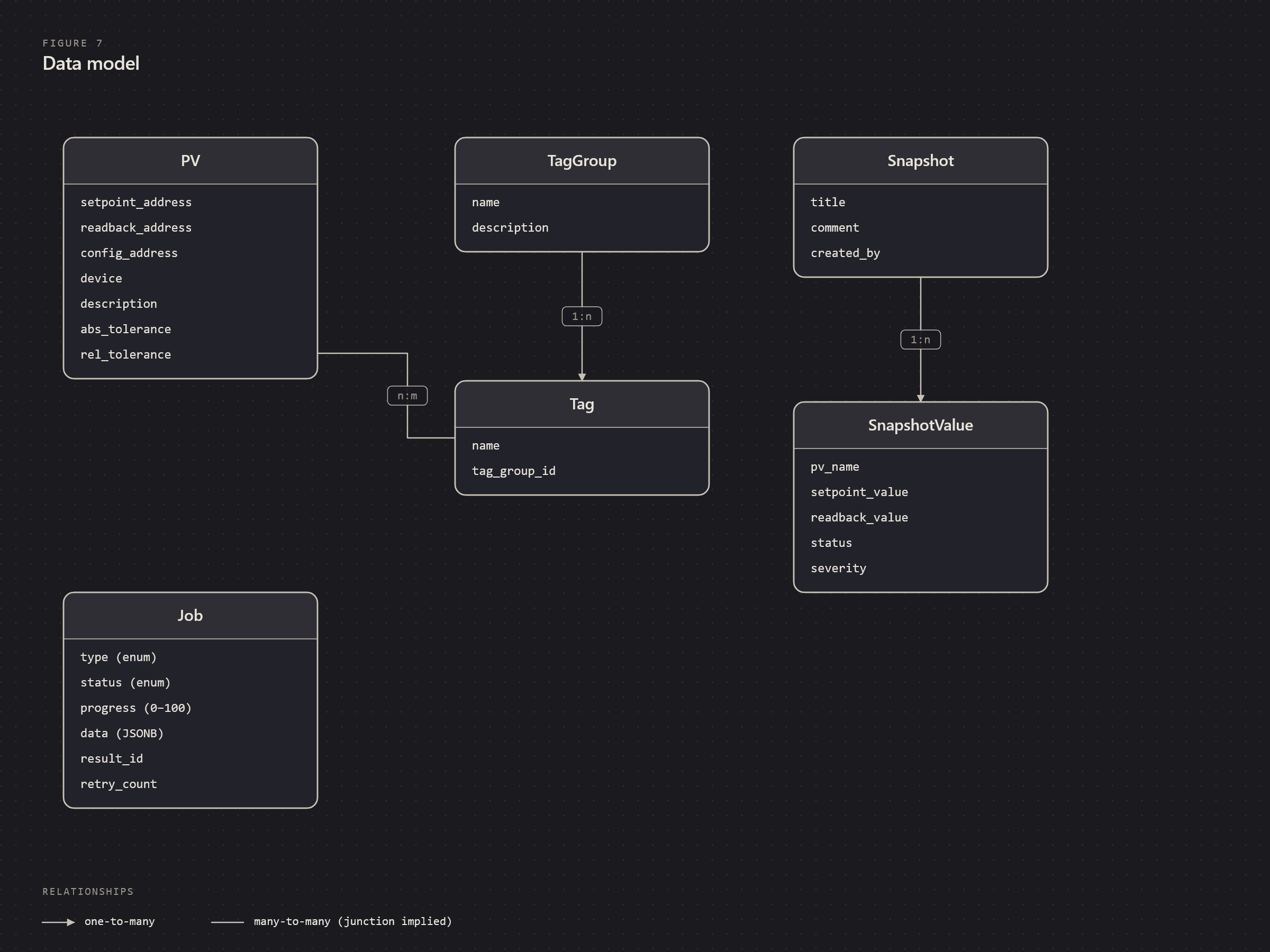

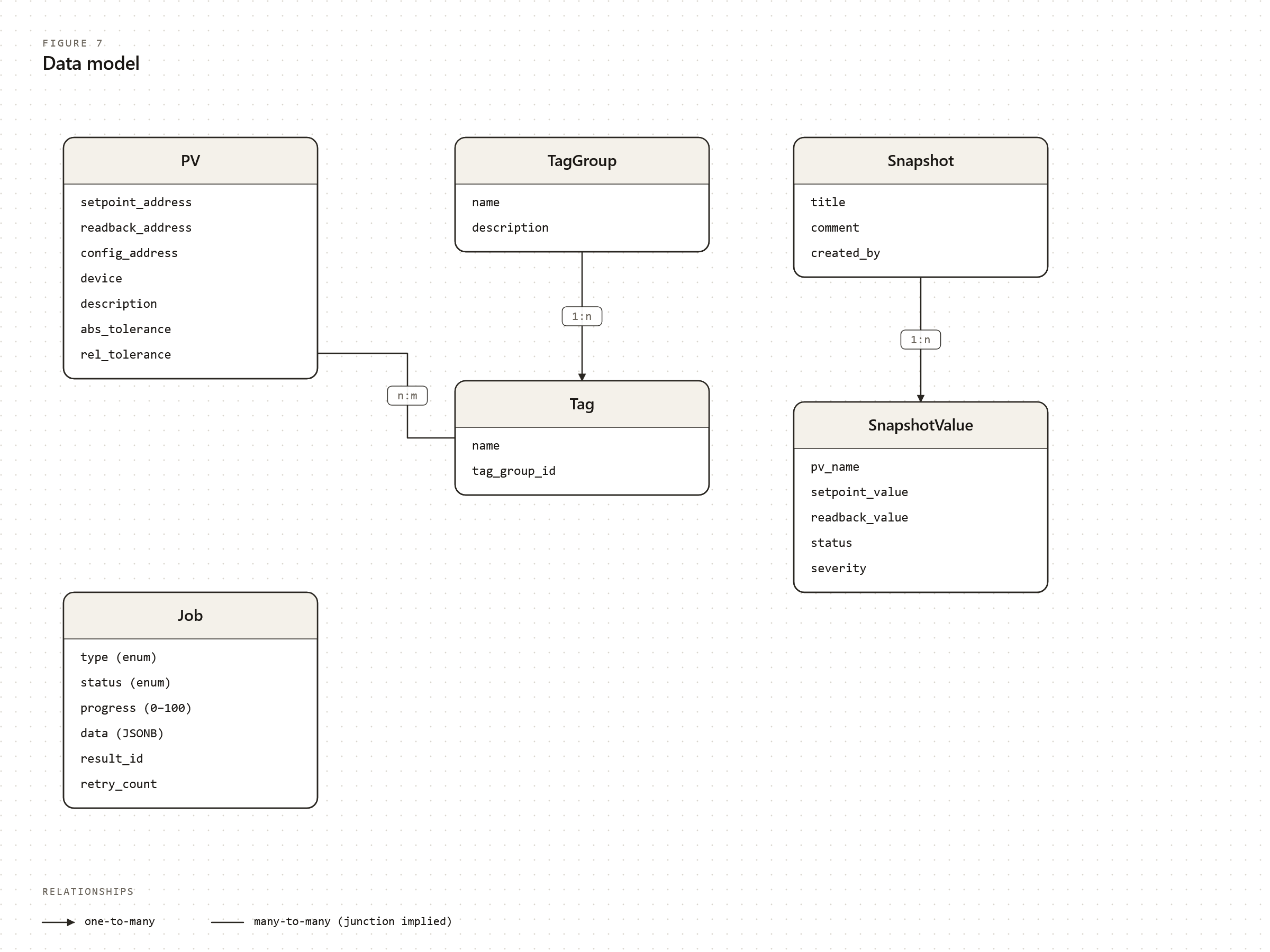

Database Models

┌──────────────────┐     ┌──────────────────┐
│       PV         │     │     TagGroup     │
├──────────────────┤     ├──────────────────┤
│ setpoint_address │     │ name             │
│ readback_address │     │ description      │
│ config_address   │     └────────┬─────────┘
│ device           │              │
│ description      │              │ 1:n
│ abs_tolerance    │              ▼
│ rel_tolerance    │     ┌──────────────────┐
└────────┬─────────┘     │       Tag        │
         │               ├──────────────────┤
         │ n:m           │ name             │
         └───────────────│ tag_group_id     │
                         └──────────────────┘

┌──────────────────┐     ┌──────────────────┐
│    Snapshot      │     │       Job        │
├──────────────────┤     ├──────────────────┤
│ title            │     │ type (enum)      │
│ comment          │     │ status (enum)    │
│ created_by       │     │ progress (0-100) │
└────────┬─────────┘     │ data (JSONB)     │
         │               │ result_id        │
         │ 1:n           │ retry_count      │
         ▼               └──────────────────┘
┌──────────────────┐
│  SnapshotValue   │
├──────────────────┤
│ pv_name          │
│ setpoint_value   │
│ readback_value   │
│ status           │
│ severity         │
└──────────────────┘

Services Layer

Service	Responsibility
EPICSService	aioca wrapper for caget/caput with circuit breaker
RedisService	PV value cache, connection tracking, pub/sub, leader election
PVMonitor	Background subscription to all PVs, updates Redis
SnapshotService	Create/restore snapshots from cache or EPICS
Watchdog	Periodic health checks, reconnection attempts
CircuitBreaker	Fail-fast on unresponsive IOCs
SubscriptionRegistry	Multi-instance WebSocket subscription tracking
BulkInsertService	High-perf PostgreSQL COPY for bulk data

External Services

┌─────────────────────────────────────────────────────────────────┐
│                    Squirrel Backend Services                     │
│  ┌─────────┐  ┌─────────┐  ┌─────────┐  ┌─────────┐            │
│  │   API   │  │ Monitor │  │ Worker  │  │ Worker  │            │
│  └────┬────┘  └────┬────┘  └────┬────┘  └────┬────┘            │
└───────┼────────────┼────────────┼────────────┼──────────────────┘
        │            │            │            │
        └────────────┼────────────┼────────────┘
                     │            │
        ┌────────────┼────────────┼────────────┐
        ▼            ▼            ▼            ▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│   PostgreSQL    │ │     Redis       │ │     EPICS       │
│   (asyncpg)     │ │   (hiredis)     │ │    (aioca)      │
├─────────────────┤ ├─────────────────┤ ├─────────────────┤
│ • PV metadata   │ │ • Value cache   │ │ • Channel Access│
│ • Snapshots     │ │ • Pub/Sub       │ │ • 40K+ PVs      │
│ • Tags          │ │ • Job queue     │ │ • Read/Write    │
│ • Jobs          │ │ • Leader lock   │ │ • Monitor       │
│                 │ │ • Subscriptions │ │                 │
└─────────────────┘ └─────────────────┘ └─────────────────┘
